Product Details:
|
| Resolving Power: | 1024*768 | Touch Form: | No Touch |
|---|---|---|---|
| CPU: | RK3568 / Cortex A55 4 Core Main Frequency At 2.0GHZ | Size: | 10.4 Inch |
| GPU: | Mali-G52 1-Core-2EE | Way To Stall: | Embedded Installation |
| High Light: | 10.4 Inch Embedded Panel PC,Embedded Panel PC IP64,Waterproof Computer Screen DC24V |
||
Product Description

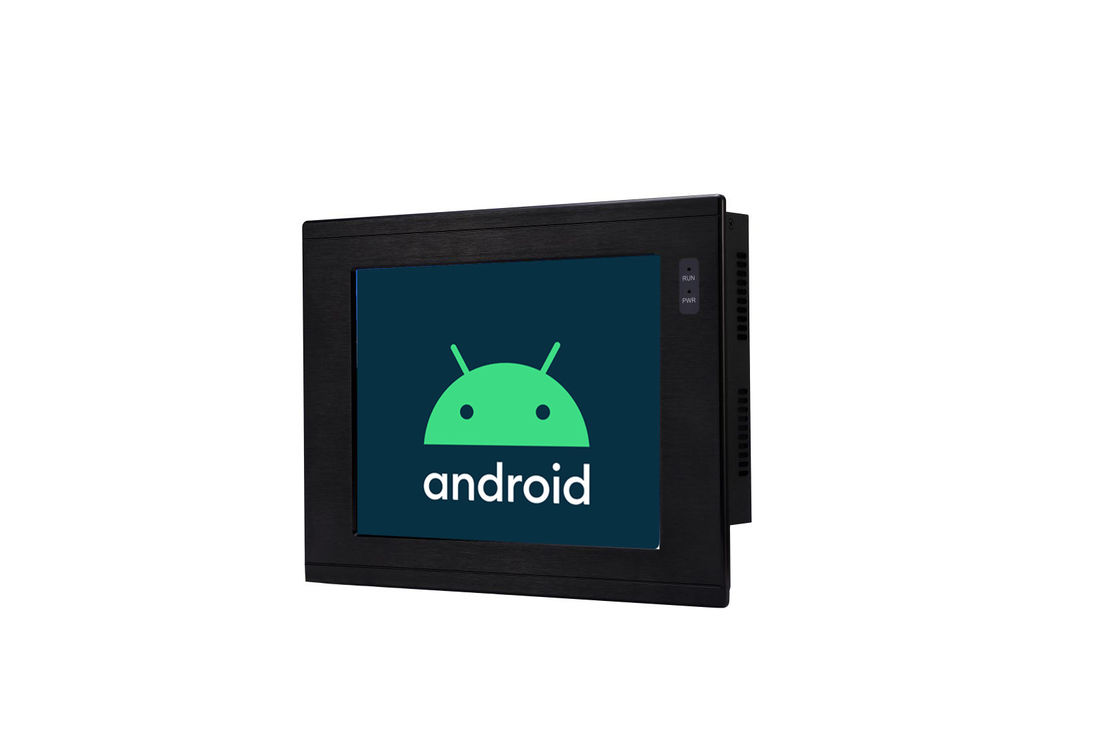

10.4 inch Waterproof Embedded Industrial Panel PC Computer Highlight screen
Product Feature
The LYA104K20I-TX is an industrial-grade high-performance embedded integrated touch screen with the chip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.4-inch LED LCD display (with a resolution of 1024 * 768). Support for USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.
Product Performance:
| Performance | Detail | |
|
System |
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 10.4 Inch |
| Resolving power | 1024 * 768 | |
| Touch form | No touch | |
| Luminance | 600 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Material quality | Aluminum alloy panel, metal rear cover |
| Way to stall | Embedded installation | |
| Dimension | W293mm×H222mm×54mm | |
| IP protection grade | Industrial grade IP64 (operating face) | |
|
Power |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-30V(Recommended value 24V) | |
|
Environmental Characteristics |
Working temperature | -20℃ ~ 70℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
3 RS232,2 RS232 / RS485 / CAN switch; 6-way TTL serial port (reuse with serial port) |
|
| Audio interface | Ear integrated interface | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| GPS | The GPS function 4G module should be replaced | |
| 4G | Expand mini PCIE 4G module | |
| GPIO | 4 input and output: 2 optical coupling input, 2 relay dry contact output; | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
Company introduction
Wuhan Longyu Intelligent Technology Co., LTD. (referred to as "Longyu Intelligent") is a high-tech enterprise focusing on industrial automation touch display products, research and development, production, sales in one. It is headquartered in Optics Valley, China. Wuhan East Lake New Technology Development Zone New energy and environmental protection industry base Gezhouba Sun City Industrial Park. After years of experience accumulation in the automatic control industry, the company fully understands the application of automatic control technology, in-depth study of the development prospects in the field of automatic control, integration of multi-industry resources, integration of advanced industrial computer technology, open up new ideas of automatic control technology, in the development and production of automatic control and embedded computer system has made a huge breakthrough. Become a strong brand company in the field, quickly become a leader in the field of automatic control, products sold at home and abroad.
