Product Details:
|
| Size: | 11.6 Inch | Waterproof: | IP65 |
|---|---|---|---|
| Luminance: | 350 Cd/cm² | CPU: | J1900 |
| Running Memory: | 2GB/4GB | EMMC: | 16GB/32GB/64GB/128GB |
| IP Grade: | Industrial Grade IP65 Dustproof And Water Proof | Backlight: | Led |
| Backlight Life: | 50000hrs | ||
| High Light: | HD Industrial Panel PC IP65,Industrial Panel PC IP65 Waterproof,Linux Tablet PC ROM 32GB |
||
Product Description

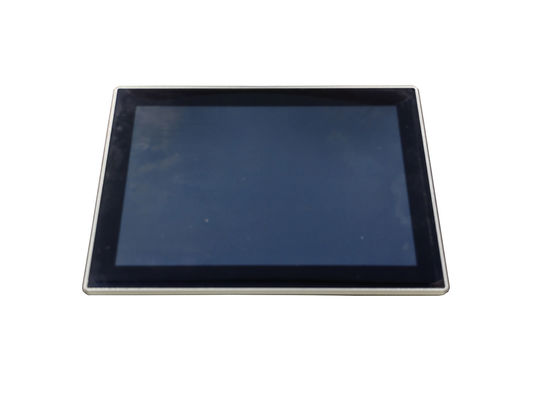

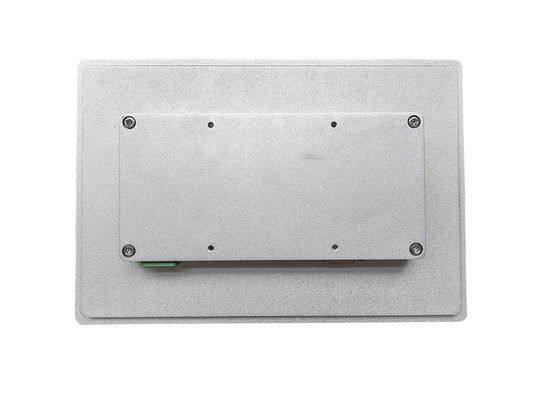

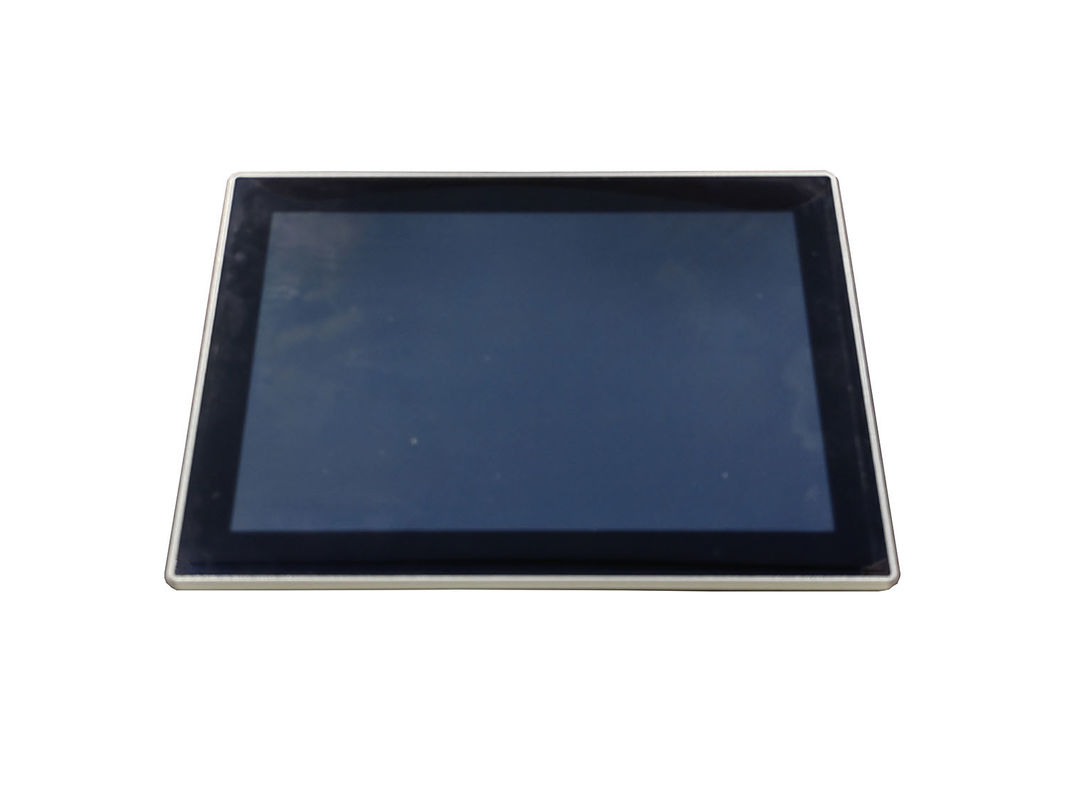

IP65 Industrial Tablet 11.6" Android Tablet RAM 2GB ROM 32GB HD 1280X800p Android Tablet
Specifications:
CPU:Intel®Celeron™ J900
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
OS: Windows7, Windows10, Linux,
LCD: 11.6 inch, 1920*1080P IPS Touch Screen
Expansion slot :1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
Relative humidity: 10~95% RH@40°C,non-condensing
Product Performance:
|
system parameter |
CPU | Intel®Celeron™ J900 |
| frequency | 2.0GHz | |
| Running memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
| EMMC | 1 * mSATA(3.0) | |
|
I/O |
network | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45以太网接口 |
| Mic | Realtek® HDA Codec, with MIC/Line-out | |
| USB | 1x USB3.0/3 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G) | |
| I/O port | 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| Operating System | Operating System | Windows7, Windows10, Linux, |
| Power | Input voltage | 12VDC (12-24VDC) |
| MaximPower Consumption | 25W | |
|
Display |
screen | 11.6" Full HD TFT |
| Resolving power | 1920*1080 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 50000hrs | |
| Pixel pitch | 0.297×0.297 | |
| Luminance | 350 cd/cm² | |
| Contrast | 700 : 1 | |
| View angle | (L) 80/ (R) 80 / (T) 80 / (B) 80 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
