Product Details:
|
| Size: | 17.3 Inch | Waterproof: | IP65 |
|---|---|---|---|
| Luminance: | 250 Cd/cm² | CPU: | J1900 |
| IP Grade: | Industrial Grade IP65 Dustproof And Water Proof | Backlight: | VGA TFT LED Led |
| Display Color: | 262K(6bit) Colors Or 16.7M | OSD Control: | Button |
| High Light: | RS485 IP65 Panel PC,RS232 IP65 Panel PC,Industrial Fanless Touch Panel |
||
Product Description

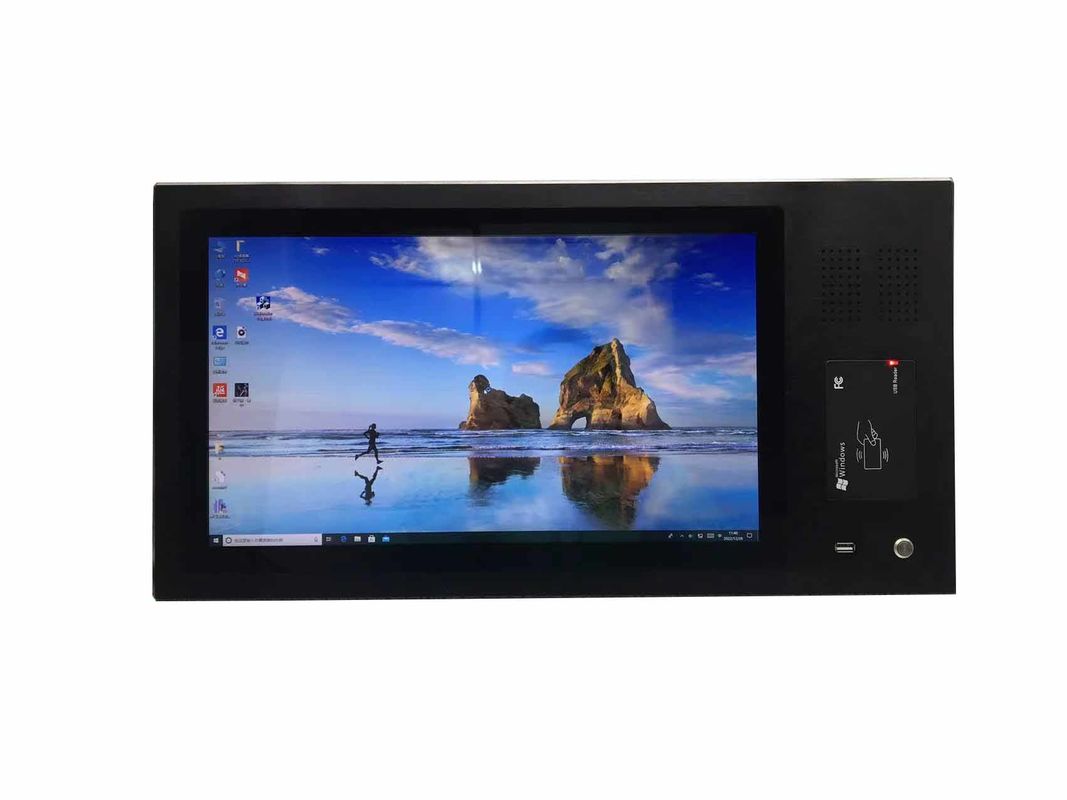

RS485 RS232 IP65 Waterproof Touch Screen Panel PC or Fanless Panel Industrial PC with 17.3 inch
Specifications:
CPU:Intel Celeron J1900 CPU 2GHz
RAM:4GB DDR4 2133MHz
ROM: 32Gb(Selectable 64Gb)
OS: Windows 7,Windows10, Windows7 Embedded,Linux
LCD: 17.3 inch, 1920x1080 (16:9)
Video Port :1 x VGA,1 x HDMI
USB: 1 x USB 3.0,3 x USB 2.0 two USB2.0 ports on the front panel, transverse slotted card swiper function with IC card swiper, and acrylic shell is added outside the swiper
Swipe card function:With IC card reader, card reader outside the increase of acrylic shell
Product Performance:
|
|
| Backlight technology | VGA TFT LED Led |
| Luminance | 250 cd/m2 |
| Backlight life | 30000 hrs |
| Visual Angle | Horizontal: 160 / vertical: 140 |
| Size | 17.3 inch |
| Display color | 262K(6bit) Colors or 16.7M |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Power input | DC in: DC 24V5A Add a 2-pin phoenix terminal |
| Way to stall | embedded |
| Dimension | 558 x 291 x 63 mm |
| Hole size | 541 x274 mm |
| BIOS | AMI 64MB Flash ROM |
| Material | aluminium alloy |
| Emmc | 64G |
| Weight (approx) | 7.5 kg / 9.5 kg |
| Power | ≤ 30W (typ.) |
| Operating system | Win 7/8,Android,Linux |
|
|
| CPU | Intel Celeron J1900 CPU 2GHz |
| Memory | 4GB DDR4 2133MHz |
| network card | 2*Realtek RTL8111E Gigabit Lan |
| PCI-E | 1 x MINI-PCIe( for 4G/WIFI ) |
| Audio interface | Line-out |
| SPK Out | 2 channels 8Ω /4W |
| Video Port | 1 x VGA,1 x HDMI |
|
USB |
1 x USB 3.0,3 x USB 2.0 two USB2.0 ports on the front panel, transverse slotted card swiper function with IC card swiper, and acrylic shell is added outside the swiper |
| Swipe card function | With IC card reader, card reader outside the increase of acrylic shell |
| COM | 4 x RS-232,1 x RS-232 / RS-485 |
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
| level of protection | IP65 |
| level of protection | Capactive 10 touch |
| System | Windows 7,Windows10, Windows7 Embedded,Linux |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
