Product Details:
|
| Luminance: | 300 Cd/ M² | Touch Form: | Capactive 10 Touch |
|---|---|---|---|
| CPU: | RK3568 / Cortex A55 4 Core Main Frequency At 2.0GHZ | Working Temperature: | -10℃ ~ 60℃ |
| Dimension: | 383 * 249 * 51mm | System: | Linux |
| High Light: | Square Embedded Touch Panel PC,Embedded Touch Panel PC IP65,Industrial Touch Panel PC Fanless |
||
Product Description

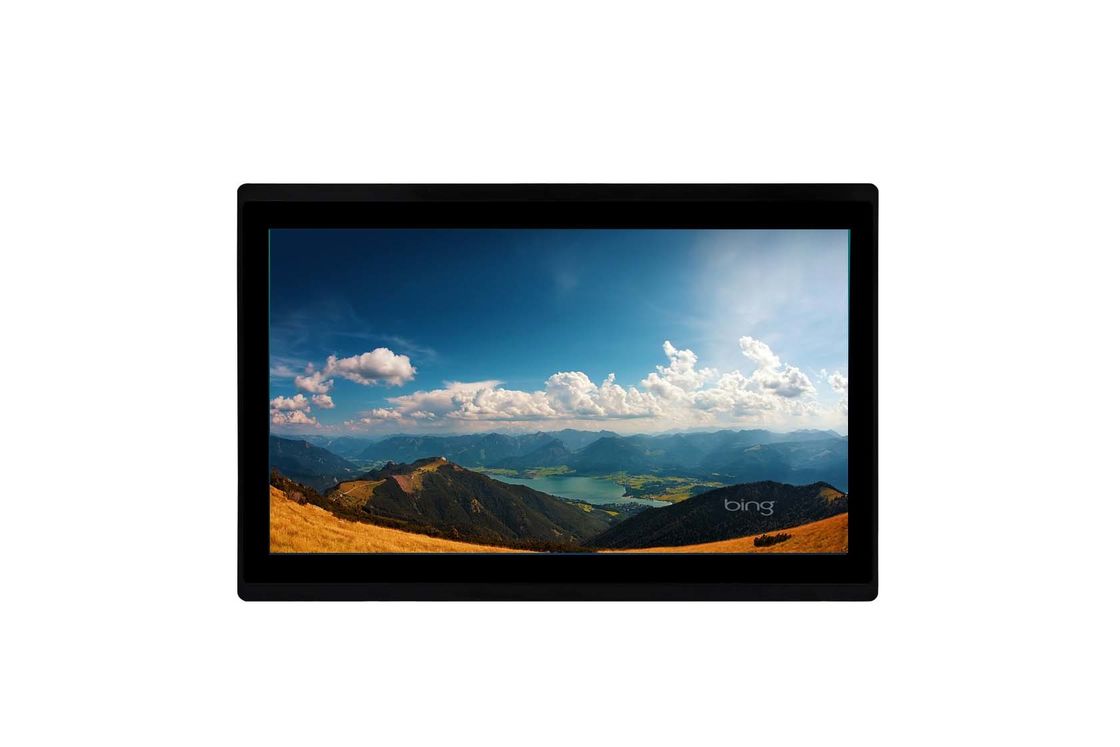

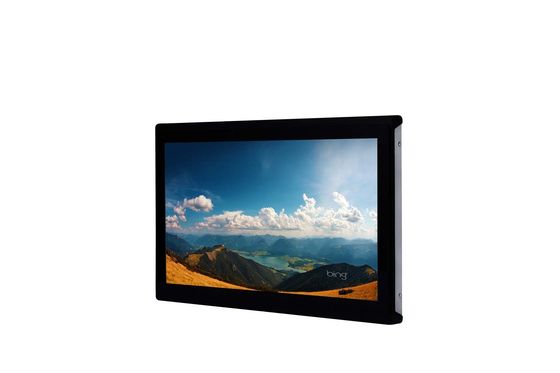

Industrial Medical IP65 Waterproof Wall Embedded Touch Square Screen Panel PC Table True Flatips Fanless PC
LYX156K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 15.6-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications.
Specifications:
CPU:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
Operating System: Linux 4.19
GPU: Mali-G52 1-Core-2EE
Luminance:300 cd/ m²(Select a 450cd / m² s)
Material quality:Plastic face frame, metal back cover
Size:15.6 Inch
Resolving power:1920 * 1080
Touch form:Capactive 10 touch
Luminance:300 cd/ m²
Angle of view:Full perspective
Way to stall:Flat, outer, embedded
Dimension:383 * 249 * 51mm
Power interface:3 PIN*2.54mm terminal DC24V provides power supply
Power input:12-30V Recommended value of 24V
Working temperature:-10℃ ~ 60℃
Storage temperature:-20℃ ~ 70℃
Product Performance:
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 2GB/4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 15.6 Inch |
| Resolving power | 1920 * 1080 | |
| Touch form | Capactive 10 touch | |
| Luminance | 300 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Way to stall | Flat, outer, embedded |
| Dimension | 383 * 249 * 51mm | |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) | |
|
Power |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V | |
|
Environmental Characteristics |
Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Serial port |
2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port) |
|
| Audio interface | 1-way MIC interface | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| GPS | The GPS function 4G module should be replaced | |
| 4G interface | Expand the miniPCIE 4G module | |
| GPIO | 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V； | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
