Product Details:
|
| CPU: | RK3568 Cortex A55 | Running Memory: | 2GB/4GB |
|---|---|---|---|
| EMMC: | 16GB/32GB/64GB/128GB | OEM/ODM: | YES |
| Working Temperature: | -10℃ ~ 60℃ | Storage Temperature: | -20℃ ~ 70℃ |
| High Light: | ODM Embedded Panel PC,Embedded Panel PC RK3568,Fanless Embedded Computer |
||
Product Description

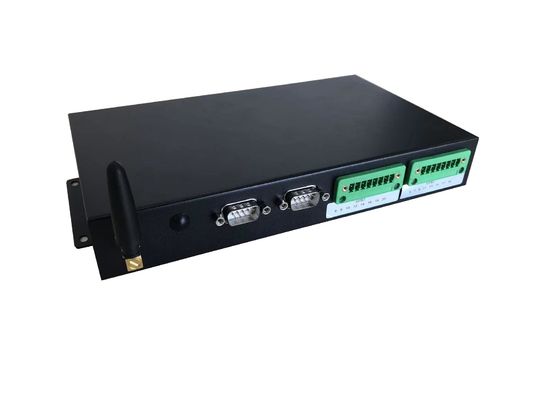

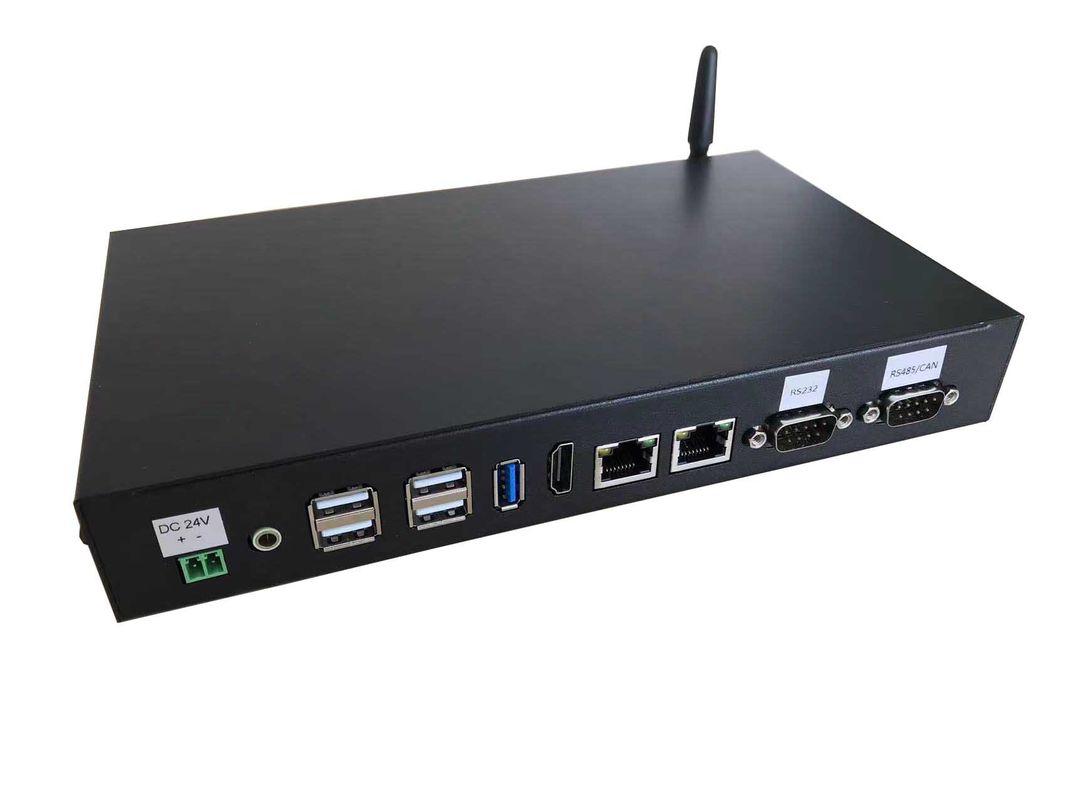

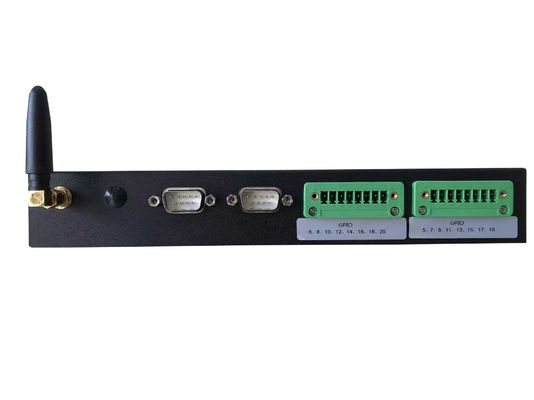

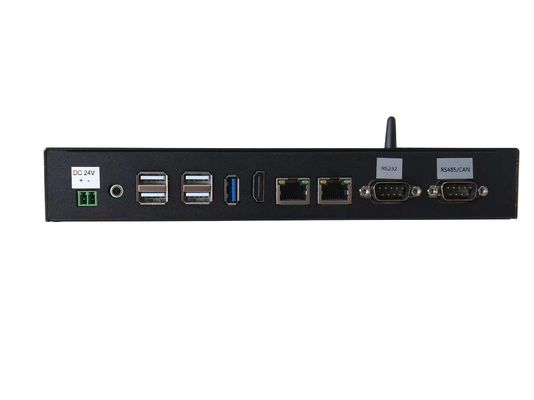

Compact Industrial Box PC Fanless Embedded Computer RK3568
CPU processor:RK3568 Cortex A55
Operating System:Android11.0 / Linux4.4 kernel / Debian10 / Ubuntu18.04
Running memory:DDR4 2GB
EMMC:8GB EMMC NAND
GPU:Mali-G52 1-Core-2EE
HDMI:HDMI 2.0 support 4K output
USB:2 vertical ports (USB 3.0x1 and USB 2.0x1), 4 horizontal ports (TYPE A), 1 built-in pin (USB 2.0)
Audio interface:Support American standard 4 segment headset in one 3.5mm socket (left-right-ground MAC)
Serial port:3*RS232 ,2* RS232/RS485/CAN Switching betweenN channels (Switching between jumper caps)
Product Performance
|
System |
CPU processor |
RK3568 Cortex A55 |
| Operating System |
Android11.0 / Linux4.4 kernel / Debian10 / Ubuntu18.04 |
|
| Running memory |
DDR4 2GB |
|
| EMMC |
8GB EMMC NAND |
|
| GPU |
Mali-G52 1-Core-2EE |
|
|
Port |
HDMI |
HDMI 2.0 support 4K output |
|
USB |
2 vertical ports (USB 3.0x1 and USB 2.0x1), 4 horizontal ports (TYPE A), 1 built-in pin (USB 2.0) | |
| Audio interface | Support American standard 4 segment headset in one 3.5mm socket (left-right-ground MAC) | |
| Serial port | 3*RS232 ,2* RS232/RS485/CAN Switching betweenN channels (Switching between jumper caps) | |
| Gigabit Ethernet interface | 2-Route 10 / 100 /1000 Mbps Ethernet port | |
|
Source |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-24V | |
|
Environmental Character istics |
Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| TF | Self-ejecting TF card socket, up to 128GB TF card support | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Road Hardware Clock | |
| WIFI/BT | 2.4G WIFI | |
|
MiniPCI-E 4G |
MiniPCI-E 4G |
|
| GPIO interface | 16* GPIO |
