Product Details:
|
| CPU: | RK3568 Cortex A55 | Running Memory: | 2GB/4GB |
|---|---|---|---|
| EMMC: | 16GB/32GB/64GB/128GB | Working Temperature: | -10℃ ~ 60℃ |
| Storage Temperature: | -20℃ ~ 70℃ | Gigabit Ethernet Interface: | 1-Route 10 / 100 /1000 Mbps Ethernet Port |
| High Light: | Fanless Embedded Panel PC,Embedded Panel PC EMMC,Industrial Embedded Box PC HDMI |
||
Product Description

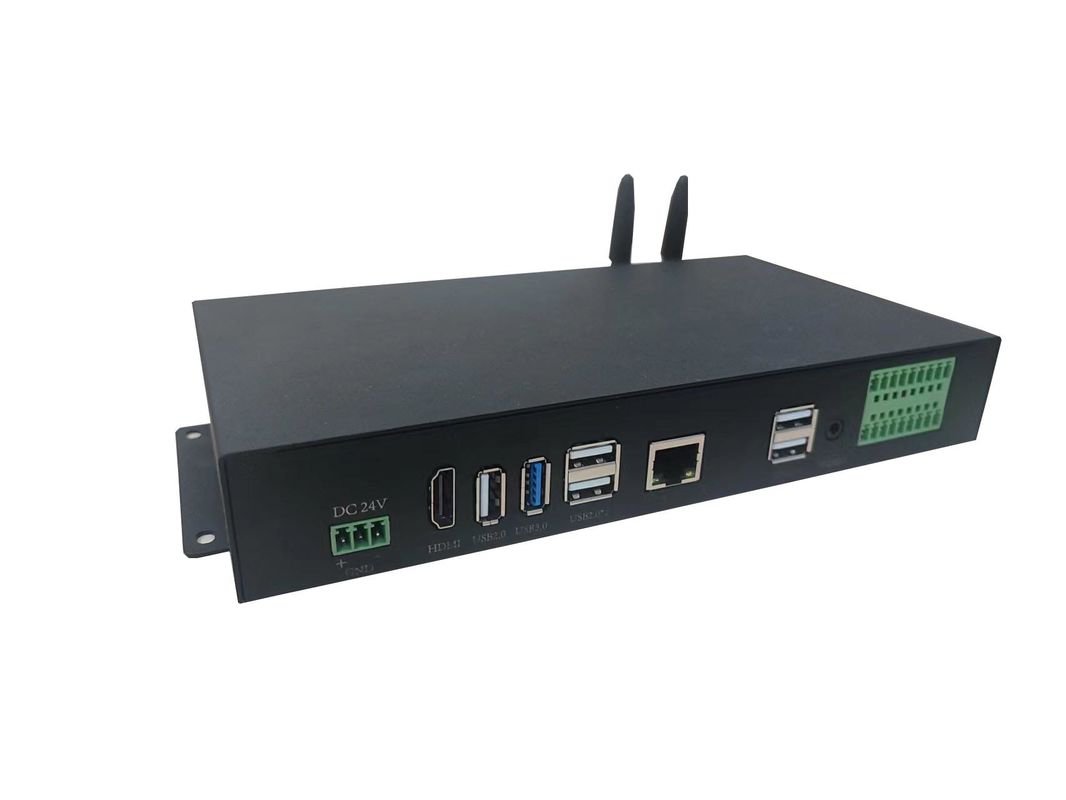

Industrial Box PC Fanless Embedded Panel PC 12V - 24V
Product features:
22 nano high performance low power consumption industrial grade motherboard;
multi-channel serial port, multi-channel USB, GPIO interface;
1 gigabit network port, 4G/5G network, WIFI, multiple network modes;
Support TF card, SATA capacity expansion storage;
Product Performance
| Function&Interface | Detailed Description | |
|
System |
CPU | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| System | Android11.0 / Linux4.4 kernel / Debian10 / Ubuntu18.04 | |
| DDR | DDR4 2GB | |
| EMMC | 8GB EMMC NAND | |
| GPU | Mali-G52 1-Core-2EE | |
| HDMI | HDMI 2.0 support 4K output | |
| USB port | 2 vertical ports (USB 3.0x1 and USB 2.0x1), 4 horizontal ports (TYPE A), 1 built-in pin (USB 2.0) | |
| Audio interface | Support American standard 4 segment headset in one 3.5mm socket (left-right-ground MAC) | |
| Serial port |
2*RS232,2*RS232/RS485 Switching(Switching between jumper caps) 6 * TTL UART |
|
| Gigabit Ethernet interface | 1-Route 10 / 100 /1000 Mbps Ethernet port | |
| TF | Self-ejecting TF card socket, up to 128GB TF card support | |
| SIM | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Road Hardware Clock | |
| WIFI/BT | Built-in high performance SDIO interface WiFi module, support IEEE 802.11b /g/n/ac, single frequency 2.4GHz by default, can be customized to dual frequency | |
| MiniPCI-E 4G | Industry standard MiniPCI-E 4G | |
| Backlight control | Industry standard LCD backlight control interface, support backlight switch and brightness adjustment | |
| GPIO | Four inputs and outputs: two optical coupler inputs and two relay dry contact outputs； | |
| Power | Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-24V | |
| Environmental parameter | Working temperature | -20℃~70℃ |
| Storage temperature | -20℃~70℃ | |
| Operating humidity | 5-90RH% | |
