Product Details:
|
| Product Size: | 12.1 Inch | Resolution Ratio: | 1024*768 |
|---|---|---|---|
| Display Brightness: | 500cd/m2 | Touch Screen: | Four Wire Resistive |
| Operational Temperature: | -30℃-70℃ | Degree Of Protection: | IP 65 |
| Input Voltage: | 15V-36V | Product Size: | W317mm×H247mm×D48.5mm |
| High Light: | IP65 Industrial HMI Panels,Industrial HMI Panels TFT,LED Light Panel RS485 |
||
Product Description

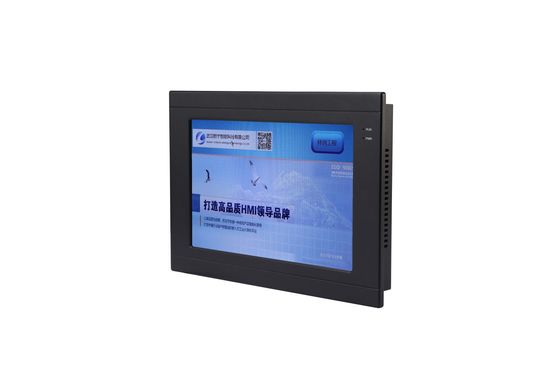

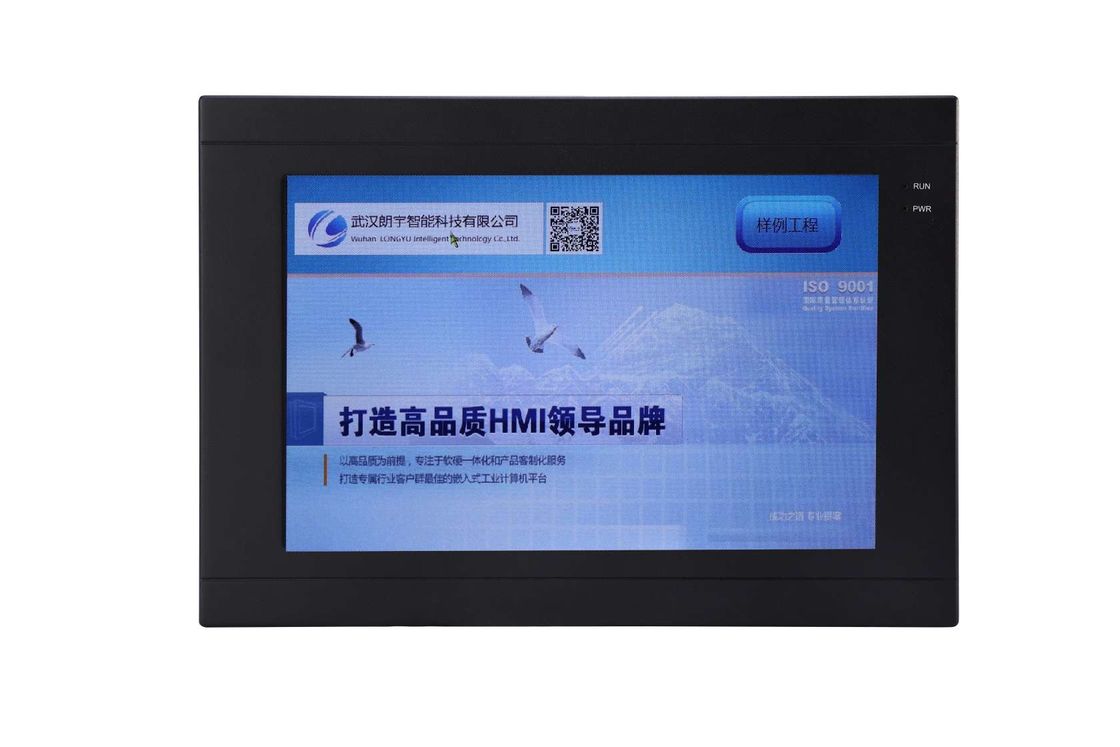

Industrial 12" RS485 Human Machine Interface HMI IP65 LED Light Panel
Specifications:
Product Performance:
| ·LCD screen: | : | 12.1-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1024*768 |
| Display brightness | : | 500cd/m2 |
| ·C P U | : | Cortex-A7 four core 1.2G |
| ·Memory | : | 1G DDRIII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |
| ·Interface | : | 1*RS232,3*RS485(1*CAN for Selectable ),2*LAN |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -30℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 15V-36V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Case Material | : | Panel aviation aluminum material, surface treatment: acrylic polyurethane. Treatment method: Primer twice and topcoat three times, with a thickness of about 0.1 mm. |
| ·Product Size | : | W317mm×H247mm×D48.5mm |
| ·Opening size | : | W305mm×H235mm |
