Product Details:
|
| Product Size: | 7 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| Display Brightness: | 1000cd/m2 | Touch Screen: | Four Wire Resistive |
| Operational Temperature: | -40℃-70℃ | Degree Of Protection: | IP 65 |
| High Light: | Multi Touch LCD Panel TFT,Multi Touch LCD Panel HMI,IP65 7 Inch LCD Panel |
||
Product Description

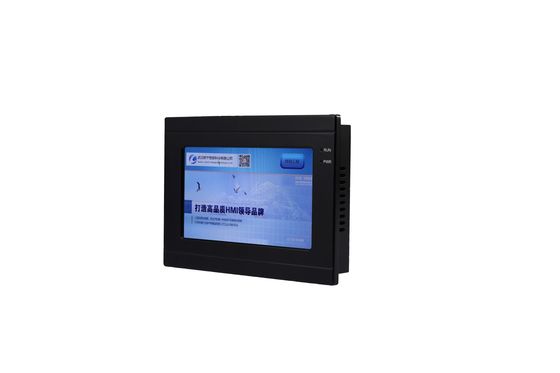

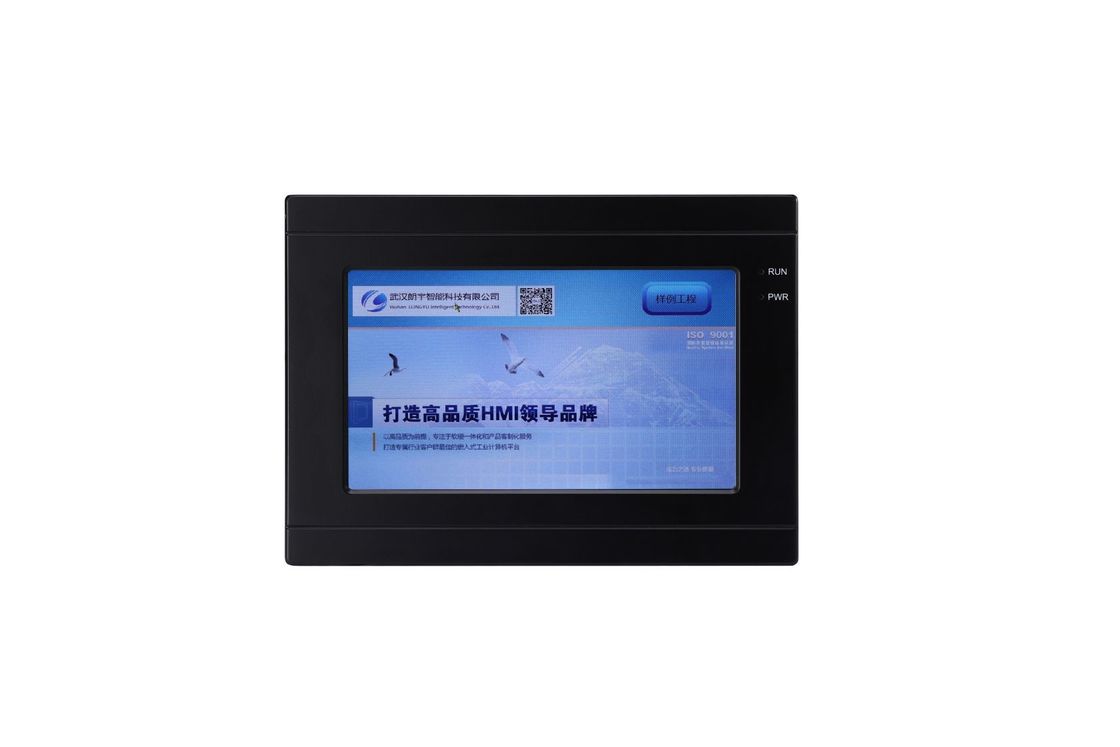

Industrial Waterproof IP65 7 Inch resistive Multi Touch LCD HMI Panel
HMIAT8070 is a high-performance embedded integrated man-machine interface with industrial-grade Quan Zhi T3 Cortex A7 quad-core 1.2G CPU as the core. This product is a 7-inch man-machine interface product designed with 100% domestic devices. It adopts a 7-inch bright LED liquid crystal display (resolution 800*480) and a four-wire resistive touch screen. At the same time, Lonkon industrial configuration software is pre-installed.
Specifications:
Product Performance:
| ·LCD screen: | : | 7-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 1000cd/m2 |
| ·C P U | : | Cortex-A7 four core 1.2G |
| ·Memory | : | 1G DDRIII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |
| ·Interface | : | 1*RS232,3*RS485(2*CAN for Selectable ),2*Lan |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -40℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 9V-36V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Case Material | : | Panel aviation aluminum material, surface treatment: acrylic polyurethane. Treatment method: Primer twice and topcoat three times, with a thickness of about 0.1 mm. |
| ·Product Size | : | W206mm×H148mm×D36mm |
| ·Opening size | : | W191mm×H132.6 mm |
