Product Details:
|
| Product Size: | 5 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| Display Brightness: | 900cd/m2 | Touch Screen: | 4 Wire Resistive |
| C P U: | Cortex A7 | Memory: | 1G DDR3 RAM |
| Operational Temperature: | -40℃-70℃ | Degree Of Protection: | IP 65 |
| High Light: | TFT HMI Operator Panel,HMI Operator Panel Waterproof,Industrial Resistive Touch Panel 4 Wire |
||
Product Description

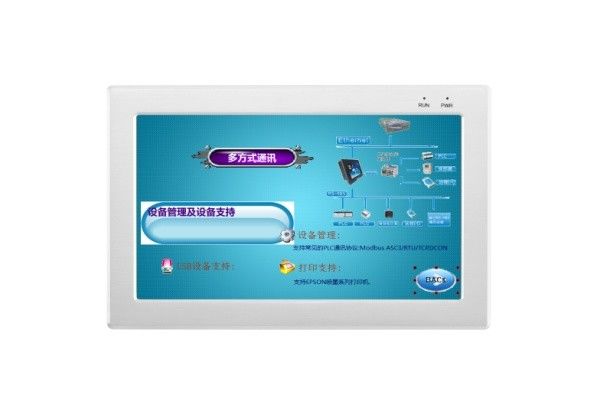

Industrial 5" HMI Operator Panel Resistive PC -40℃-70℃ IP 65 hmi for waterproof
HMIAT8050 is a high-performance embedded integrated man-machine interface with industrial-grade Quan Zhi T3 Cortex A7 quad-core 1.2G CPU as the core. This product is a 5-inch man-machine interface product designed with 100% domestic devices. It adopts a 5-inch high-brightness LED liquid crystal display (resolution 800*480) and a four-wire resistive touch screen. At the same time, Lonkon industrial configuration software is pre-installed.
Specifications:
Product Performance:
| ·LCD screen: | : | 5-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 900cd/m2 |
| ·C P U | : | Cortex-A7 four core 1.2G |
| ·Memory | : | 1G DDRIII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |
| ·Interface | : | 1*RS232,1*RS485,1*Lan |
| ·Extension interface | : | 2*USB 2.0 HOST |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -40℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 9V-36V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W150mm×H100mm×D32.6mm |
| ·Opening size | : | W141mm×H91 mm |
