Product Details:
|
| Size: | 10.4" | Visual Angle: | Horizontal: 170 / Vertical: 140 |
|---|---|---|---|
| Brightness: | 350 Cd/m2 | Mounting Method: | Embedded, Wall-mounted |
| DisplayPort: | VGA / DVI / HDMI | Power: | DC 12V5A |
| High Light: | 10.4 Inch Capacitive Touchscreen Monitor,Capacitive Touchscreen Monitor USB,TFT Wall Mounted LCD Panel |
||
PRODUCT DESCRIPTION

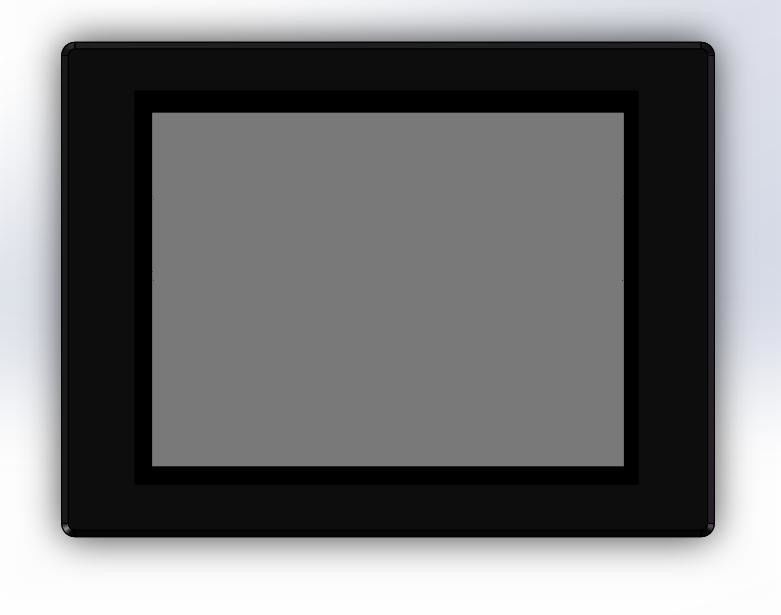

Wall-mounted Panel LCD Monitor Touch Screen 1024X 768 10.4 Inch Capacitive Touchscreen Monitor
PAL-104CHT is a set of low power consumption, multi-interface industrial display. This product is designed with 10.4-inch high brightness TFT LCD screen and capacitive touch screen.
FEATURES
Backlight technology:TFT LED
Visual Angle(H / V°):170/140
Backlight life(HRS):30,000 hrs
Luminance(cd/m2):350
Product size:10.4"
Display resolution:1024 x 768
Display color:16.7M or 256K Color
Power input:12 VDC @ 5A
Way to stall:Embedded, wall-mounted
Dimension:293 x 222x 43.2mm
Hole size:278 x207mm
DisplayPort:1 X HDMI, 1 X DVI, 1 X VGA
Touch interface:USB
Working environment:-20 ~ 60° C
Storage environment:-20 ~ 70° C
Working humidity:5 ~ 85% @ 40°C (Non-condensing)
Vibration protection:5 ~ 500 Hz, 1 GRMS Random vibrations
SPECIFICATION
| Model Number | PAL-104CHT |
| Dispaly | |
| Backlight technology | TFT LED |
| Visual Angle(H / V°) | 170/140 |
| Backlight life(HRS) | 30,000 hrs |
| Luminance(cd/m2) | 350 |
| Product size | 10.4" |
| Display resolution | 1024 x 768 |
| Display color | 16.7M or 256K Color |
| Conventional parameters | |
| Power input | 12 VDC @ 5A |
| Way to stall | Embedded, wall-mounted |
| CertificationCertification | CE, FCC |
| Dimension | 293 x 222x 43.2mm |
| Hole size | 278 x207mm |
| DisplayPort | 1 X HDMI, 1 X DVI, 1 X VGA |
| Touch interface | USB |
| Audio port | Audio input comes with speaker output |
| exterior | The front panel aluminum alloy is integrally formed. |
| Power | ≤15 W |
| Environmental parameter | |
| Working environment | -20 ~ 60° C |
| Storage environment | -20 ~ 70° C |
| Working humidity | 5 ~ 85% @ 40°C (Non-condensing) |
| vibration protection | 5 ~ 500 Hz, 1 GRMS Random vibrations |
| Touch screen | |
| Knocking life | 250gf,One million times |
| Stroke life | 250gf,One million times |
| controller | Number of touch point synchronous detection, up to 10 points. |
| luminousness | >90% |
| Touch form | Capacitive |
