Product Details:
|
| Size: | 15.6” | Backlight Technology: | Led |
|---|---|---|---|
| Contrast Ratio: | 3000:1 | Frequency Of Refresh: | 60Hz |
| Power Input: | DC 12V3A (50/60 Hz) | Display Resolution: | 1920x1080 |
| Work Environment: | 0 °C ~ 40 °C | Storage Environment: | -20 °C ~ 60 °C |
| High Light: | Windows Touch Screen Monitor GTG,Windows Touch Screen Monitor 15.6”,Touch Screen Monitor Touchscreen Waterproof |
||
Product description

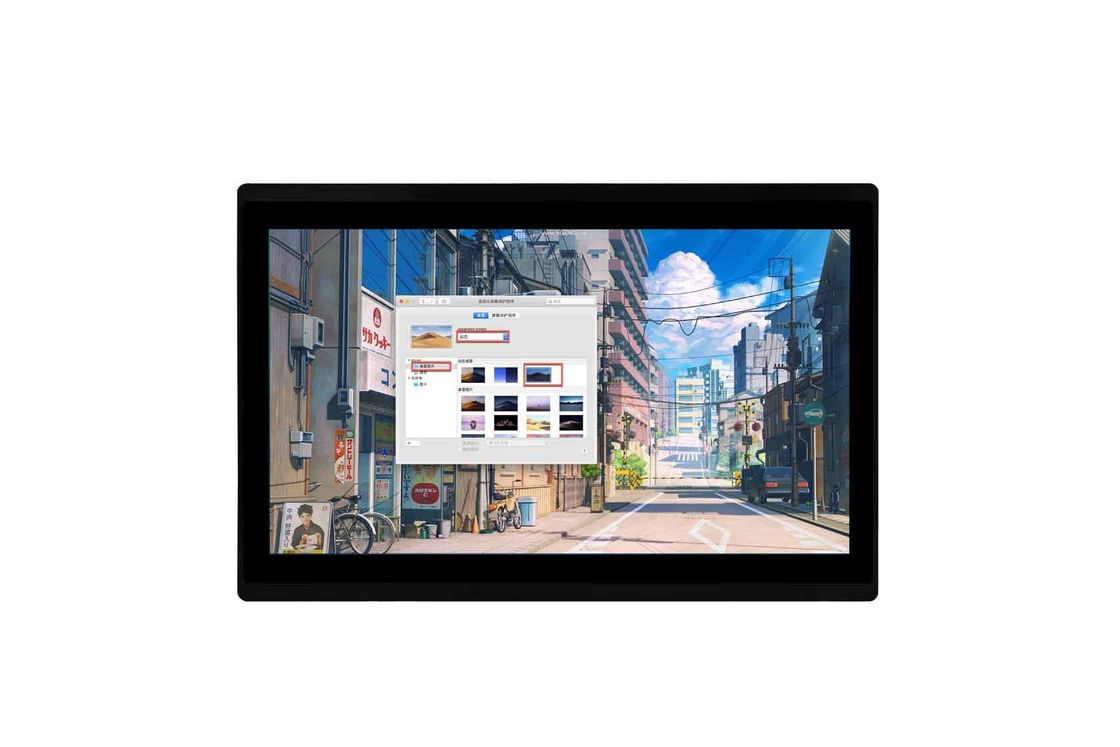

Android Windows Touch Screen Monitor Touchscreen Waterproof 25ms GTG 15.6”
LY-A156HL Monitor HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / HDMI
OSD control:button
OSD language:English, Chinese
Touch point number:10
Glass:3mm black screen screen tempered glass
Touch technology:Projective capacitor (G + G)
The pen type:Fingers, hands with gloves, and a conductive stylus
Waterproof performance:Touch surface is not affected by water droplets or water vapor
Response time:7ms-12ms
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Wall hanging form:VESA,MIS-E,C
Work environment:0 °C ~ 40 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 383 x 249 x 48 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | none |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
