Product Details:
|
| Backlight Technology: | Led | Power Input: | DC 12V3A (50/60 Hz) |
|---|---|---|---|
| OEM/ODM: | YES | Connector: | VGA / DVI / HDMI |
| Luminance: | 300 Cd/m2 | Touch Point Number: | 10 |
| High Light: | ODM LCD Touch Screen Monitors,LCD Touch Screen Monitors ROHS,10 Point Touch Screen Monitor DVI |
||
PRODUCT DESCRIPTION

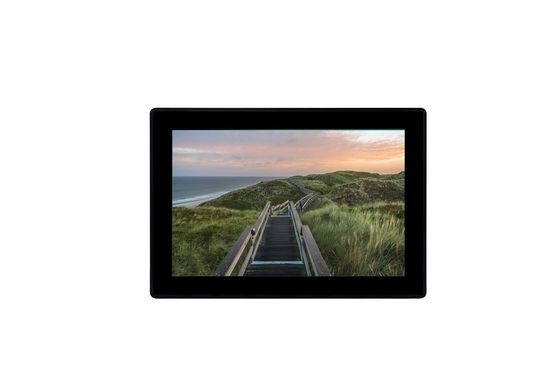

CE 10.1 Inch Vesa Mount FHD1920*1080 16: 9 10-Point Multi-Touch Panel TFT LCD Touch Screen Monitor
LY-A101 Monitor HD display color realistic, excellent workmanship, quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:300 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / DVI / HDMI
Touch point number:10
Glass:3mm black screen screen tempered glass
Touch technology:Projective capacitor (G + G)
The pen type:Fingers, hands with gloves, and a conductive stylus
Waterproof performance:Touch surface is not affected by water droplets or water vapor
Response time:7ms-12ms
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Accessories:
1 x Home AC Adapter
1 x Remote Controller
1 x SKS Cable
1 x VGA & USB Cable
1 x Operation Manual
1 x YPbPr Video Input Cable(optional)
1 x Touch Drive Disk(touch for optional)
1 x Touch Pen(touch for optional)
Product Performance:
|
|
| Backlight technology | Led |
| Luminance | 300 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
