Product Details:
|
| Luminance: | 500 Cd/ M² | Working Temperature: | -0℃ ~ 40℃ |
|---|---|---|---|
| Storage Temperature: | -20℃ ~ 60℃ | Size: | 23.6 Inch |
| Display Resolution: | 1920x1080 (16:9) | Response Time: | 7ms-12ms |
| Touch Technology: | Projective Capacitor (G + G) | Interlinkage: | USB2.0(Type B Socket) |
| High Light: | 23.6 Inch LCD Touch Screen Monitors,LCD Touch Screen Monitors 500cd,Industrial Touch Monitor USB2.0 |
||
Product Description
23.6 inch industrial touch screen LCD monitor for Brightness 500cd
HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.
Product Feature

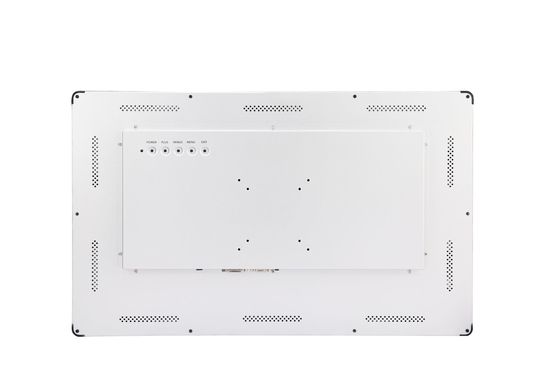

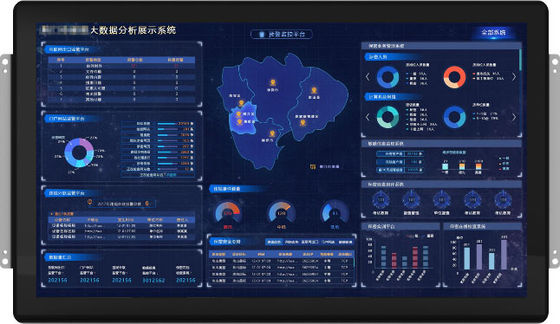

23.6 Inch Open Frame Touchscreen with Metal Frame
1.16: 9, Metal Frame

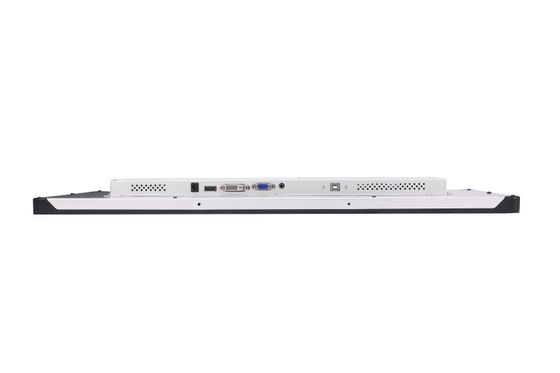

2. Inputs: VGA / DVI / HDMI
3.Operating system: Win 7/8,Android,Linux
4. Power Input: 12V3A (50/60 Hz)
5.Touch surface is not affected by water droplets or water vapor
6.Visual Angle:Horizontal: 178 / Vertical: 178
Product Performance:
|
|
| Backlight technology | Led |
| Luminance | 500 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 585.4 x 357.7 x 42.8 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
