Product Details:
|
| Size: | 21.5" | Resolution: | 1920*1080 |
|---|---|---|---|
| Operating System: | Android11.0 | CPU: | RK3568 / Cortex A55 4 Core Main Frequency At 2.0GHZ |
| Running Memory: | 4GB | EMMC: | 32GB |
| Working Temperature: | -10℃ ~ 60℃ | Storage Temperature: | -20℃ ~ 70℃ |
| High Light: | Linux Fanless Industrial Touch Panel PC,Fanless Industrial Touch Panel PC,Fanless Touch Panel PC |
||
Product Description

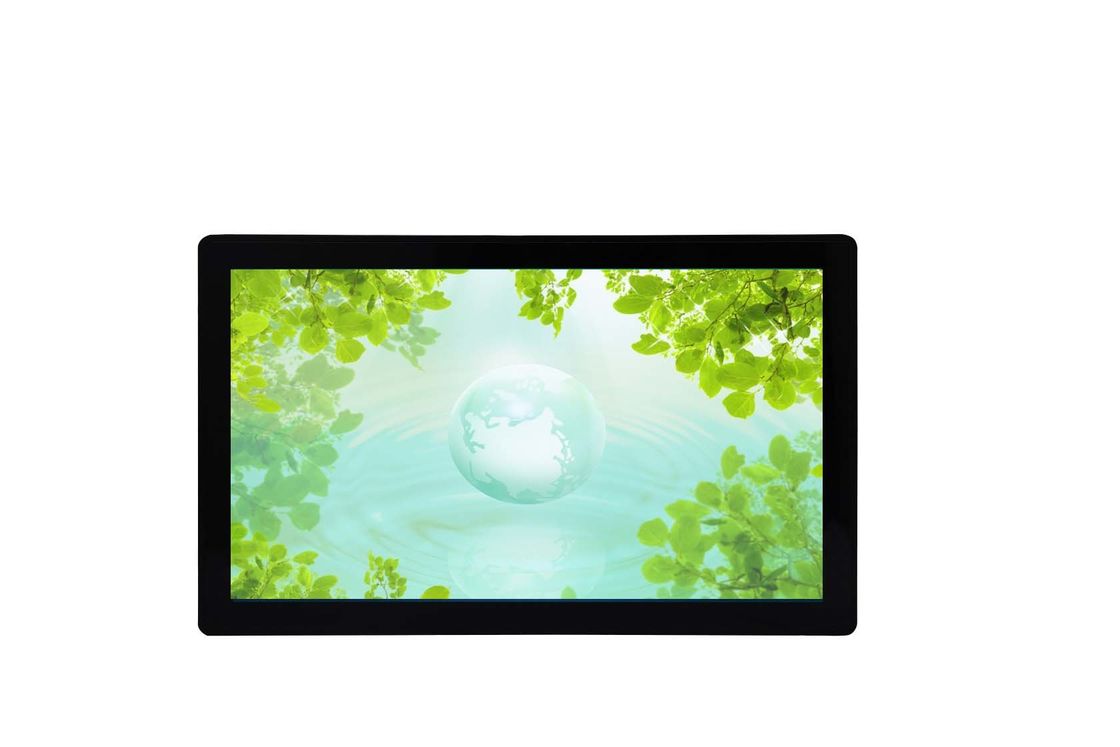

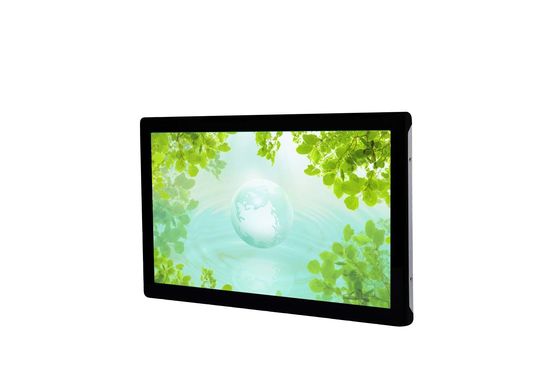

IP65 Waterproof Front Bezel Linux 4G 32G Capacitive Touchscreen Fanless Industrial Panel PC
LYX215K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 21.5-inch LED LCD display and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications.
Features:
CPU processor:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System:Android11.0/Ubuntu18.04/Linux 4.19
Running memory:4GB
EMMC:16GB/32GB/64GB/128GB
GPU:Mali-G52 1-Core-2EE
Size:21.5 Inch
Resolving power:1920 * 1080
Touch form:Capactive 10 touch
Luminance:300 cd/ m²
Material quality:Plastic face frame, metal back cover
Power interface:3 PIN*2.54mm terminal DC24V provides power supply
Power input:12-30V Recommended value of 24V
Serial port:2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
Audio interface:1-way MIC interface
RTC:1 Built-in supercapacitor
Product Performance:
| Performance | Detail | |
|
System
|
CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 | |
| Running memory | 4GB | |
| EMMC | 16GB/32GB/64GB/128GB | |
| GPU | Mali-G52 1-Core-2EE | |
|
Display |
Size | 21.5 Inch |
| Resolving power | 1920 * 1080 | |
| Touch form | Capactive 10 touch | |
| Luminance | 300 cd/ m² | |
| Angle of view | Full perspective | |
|
Material |
Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded | |
| Dimension |
533 * 324 * 47mm |
|
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) | |
|
Power |
Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V | |
|
Environmental Characteristics |
Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Operating humidity | 5-90 RH% | |
| Serial port |
2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port) |
|
| Audio interface | 1-way MIC interface | |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port | |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution | |
| TF | 1-Route TF card interface | |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface | |
| RTC | 1 Built-in supercapacitor | |
| WIFI/BT | 2.4G WIFI / BT4.2 | |
| 4G interface | The GPS function 4G module should be replaced | |
| GPIO interface | Expand the miniPCIE 4G module | |
| GPIO | 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V； | |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0) | |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) | |
