Product Details:
|
| CPU: | Intel®Celeron™ J6413 | Operating System: | Windows10, Linux, |
|---|---|---|---|
| Backlight Life: | 30000hrs | Network: | 2 X Intel I211 1000Mbps RJ-45 |
| I/O Port: | DVI-I / 1 X HDMI/2 X GLAN / 4 X USB / Line-out / Mic-in/DC-IN | Luminance: | 250cd/cm2 |
| High Light: | Industrial IP65 Panel PC,IP65 Panel PC EMMC,19 Inch Touch Screen J6413 |
||
Product Description

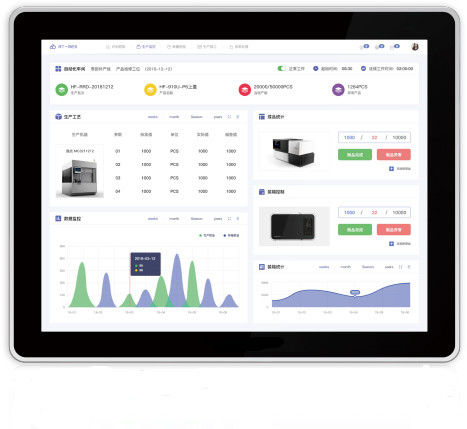

IP65 Waterproof 19 Inch Touch Screen J6413 Industrial Panel PC 4*RS232
Specifications:
Product Performance:
|
System parameter |
CPU | Intel®Celeron™ J6413 |
| frequency | 1.8~3.0GHz | |
| Running memory | Support DDR4-2133MT/s, Up to 16GB | |
| EMMC | 1 x 3.0" SATA + 1*M.2 2280 M-key | |
|
I/O |
network | 2 x Intel i211 1000Mbps RJ-45 |
| Mic | Realtek ACL662 | |
| USB | 4 x USB3.0/4 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1*M.2 2242/50 B-Key support 4G/5G;WIFI | |
| I/O port | DVI-I / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| Physical characteristics | Dimension (W x H x D) |
440mm x364mm x 52mm
|
| hole size (W x H) |
416mm x346mm |
|
| Net Weight |
5.87kg |
|
| Operating System | Operating System | Windows10, Linux |
| Power | Input voltage | 9-36VDC Supports reverse connection protection |
| MaximPower Consumption | 33W | |
|
Display |
screen | 19" Full HD TFT |
| Resolving power |
1280*1024 |
|
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 30000hrs | |
| Pixel pitch |
0.248*0.248 |
|
| Luminance | 250 cd/cm² | |
| Contrast | 1000 : 1 | |
| View angle | (L) 85/ (R) 85/ (T) 85 / (B) 85 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
