Product Details:
|
| Size: | 32 Inch | Backlight Technology: | Led |
|---|---|---|---|
| Power Input: | DC 12V3A | Display Resolution: | 1920x1080 |
| Work Environment: | 0 °C ~ 40 °C, 90% RH | Storage Environment: | -20 °C ~ 60 °C, 90% RH |
| High Light: | Kiosks Wall Mounted Touch Screen Monitor,Wall Mounted Touch Screen Monitor USB2.0,Touchscreen Monitor Display ROHS |
||
PRODUCT DESCRIPTION

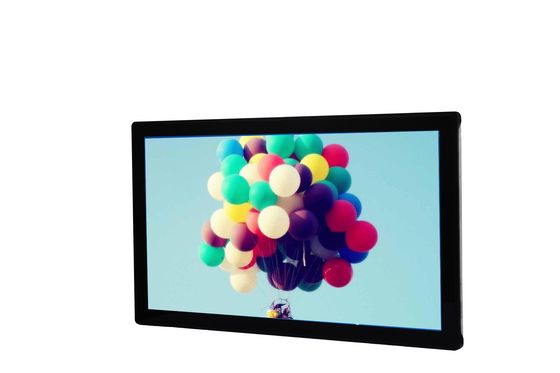

32 Inch DC 12V3A Wall Mounted Touch Screen Monitor LCD Panel Industrial Display Touchscreen Monitor
LY-B320 Monitor HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178v
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / DVI / HDMI
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Wall hanging form:VESA,MIS-E,C
Work environment:0 °C ~ 40 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
Dimension:780.2 x 474.8 x 54.5 mm
Opening size:772 x 467 mm
|
|
| Backlight technology | Led |
| Luminance |
≥250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7 Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration | / |
| Response time | / |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 780.2 x 474.8 x 54.5 mm |
| Opening size | 772 x 467 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | none |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
