Product Details:
|
| Size: | 19” | Backlight Technology: | Led |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A (50/60 Hz) |
| Display Resolution: | 1280x1024 | Luminance: | 250 Cd/m2 |
| High Light: | VESA Industrial Touch Screen Monitors,Industrial Touch Screen Monitors USB2.0,Touch Screen Monitor Display OSD |
||
PRODUCT DESCRIPTION

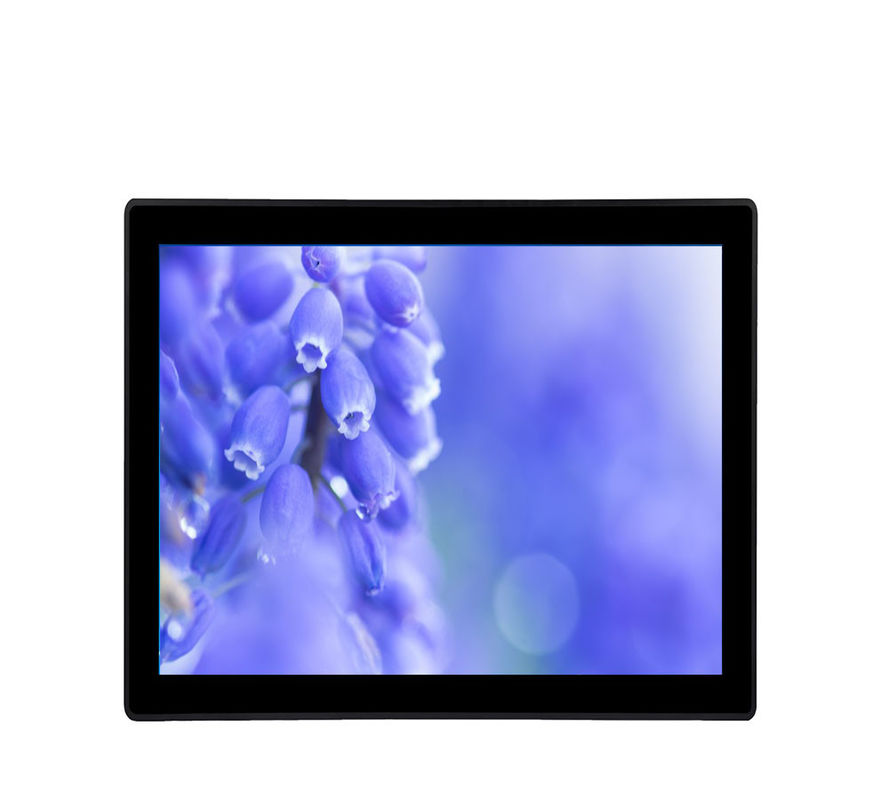

Industrial Metal Open Frame Embedded Wall Mount LCD Display Touch Screen Monitor
Touch screen parameters
Glass:3mm black screen screen tempered glass
Touch point number:10
Touch technology:Projective capacitor (G + G)
Waterproof performance:Touch surface is not affected by water droplets or water vapor
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1280x1024 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1280x1024 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| External dimensions | 465 x 285.5 x 42.5 mm |
| Open hole dimensions | 522x 313.5mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 20W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
