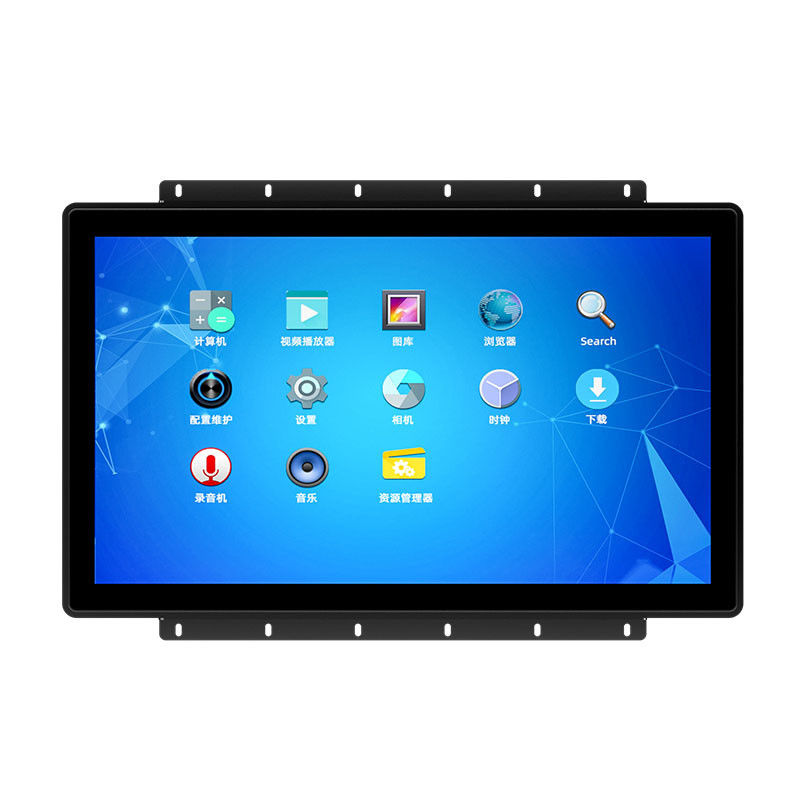

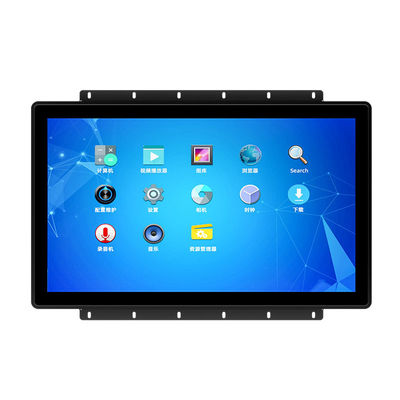

Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE

Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE
Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE

Large Image :  Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE

Product Details:
Place of Origin: China
Brand Name: LONGYU
Certification: CE RoHS
Model Number: LYA215K20C-BT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: TBA
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time: 7-10 Work Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000PCS/Month

Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE

Description
Size: 21.5" Touch Form: 10-point Capacitive Touch Screen
Operating System: Android11.0/Ubuntu18.04/Linux 4.19 CPU: RK3568 / Cortex A55 4 Core Main Frequency At 2.0GHZ
Running Memory: 2GB/4GB EMMC: 16GB/32GB/64GB/128GB
Working Temperature: -10℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃
High Light:

Embedded 21.5 Inch Touch Screen Monitor

,

21.5 Inch Touch Screen Monitor CE

,

Ubuntu Embedded Touch Screen

Product Description



Embedded 21.5 Inch Touch Screen Monitor Open Frame Touch Monitor with BT wifi



LYA215K20C-BT is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 21.5-inch LED LCD display and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.



Product Feature

CPU processor:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ

Operating System:Android11.0/Ubuntu18.04/Linux 4.19

Running memory:2GB/4GB

EMMC:16GB/32GB/64GB/128GB

GPU:Mali-G52 1-Core-2EE



Working temperature:-10℃ ~ 60℃

Storage temperature:-20℃ ~ 70℃



Dimension:533 * 324 * 47mm

Resolving power:1920 * 1080

Touch form:Capactive 10 touch

Luminance:300 cd/ m²



Product Performance:



  Performance Detail





System



CPU processor RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System Android11.0/Ubuntu18.04/Linux 4.19
Running memory 2GB/4GB
EMMC 16GB/32GB/64GB/128GB
GPU Mali-G52 1-Core-2EE





Display

Size 21.5Inch
Resolving power 1920 * 1080
Touch form Capactive 10 touch
Luminance 300 cd/ m²
Angle of view Full perspective





Material

Material quality Plastic face frame, metal back cover
Way to stall Flat, outer, embedded
Dimension

533 * 324 * 47mm

IP protection grade Industrial grade IP65 dustproof and water proof (operating face)



Power

Power interface 3 PIN*2.54mm terminal DC24V provides power supply
Power input 12-30V Recommended value of 24V



Environmental Characteristics

Working temperature -10℃ ~ 60℃
Storage temperature -20℃ ~ 70℃
Operating humidity 5-90 RH%
Serial port

2 RS232,2 RS232 / RS485 switch;

6-Road TTL serial port (reuse with serial port)

Audio interface 1-way MIC interface
Gigabit Ethernet interface 1 Route 10 / 100 / 1000 Mbps Ethernet port
HDMI interface 1-Way HDMI output, up to 3840 * 2160 resolution
TF 1-Route TF card interface
SIM card 1 Standard drawer-type interface with reserved eSIM interface
RTC 1 Built-in supercapacitor
WIFI/BT 2.4G WIFI / BT4.2
4G interface The GPS function 4G module should be replaced
GPIO interface Expand the miniPCIE 4G module
GPIO 4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V;
USB2.0 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
USB3.0 1 Vertical USB 3.0 (switch through dial switch)





Warranty Instruction



Our company will provide you the following services with this card and invoice (or copy) in accordance with the provisions listed in this warranty card:

  • The machine is guaranteed for three years. Free warranty for the first year; Only the cost fee will be charged in the second and third years, and the service fee will be charged after three years
  • The warranty period starts from the date of invoice
  • Please keep this warranty card and invoice (or copy) properly. You can enjoy warranty service only if you show them together during the period
  •  During the warranty period, failure occurs due to the following conditions:We will charge a certain fee at its discretion

Company introduction



Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.

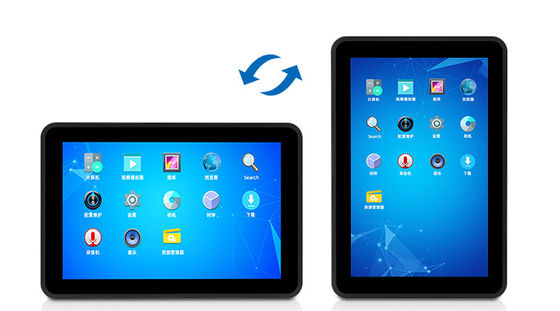

Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 0

Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 1


Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 2Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 3
Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 4
Ubuntu Embedded 21.5 Inch Touch Screen Monitor With BT Wifi CE 5
