Product Details:
|
| Product Size: | 7 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| Display Brightness: | 300cd/m2 | Touch Screen: | Four Wire Resistive |
| Interface: | 1*RS232、2*RS485、1*LAN | Operational Temperature: | -10℃ To +50℃ |
| Extension Interface: | 2*USB 2.0 | Real Time Clock: | Available |
| High Light: | Resistive Panel Mount Touch Screen Monitor,Panel Mount Touch Screen Monitor Embedded,Touch Screen Monitor 7 Inch TFT |
||
Product Description

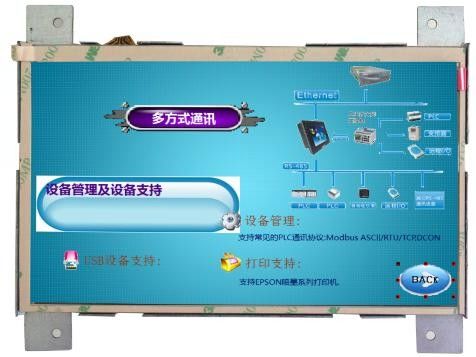

7 Inch Four wire resistive Industrial Wall Mount Touch Screen Monitor Panel

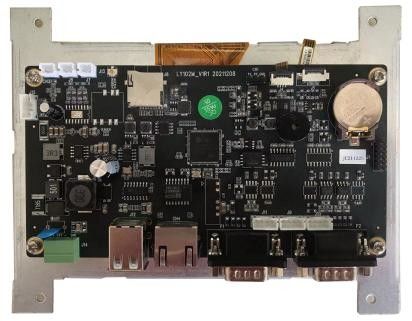

HMIAT3070TSM is a high-performance embedded integrated human-computer interface based on the industrial-grade Cortex A7 (dual-core main frequency 1.2 Ghz) CPU. The product is designed with a 7-inch LED LCD display (resolution 800*480) and a four-wire resistive touch screen.
Specifications:
● LCD screen 7-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:800*480
● Display brightness:300cd/m2
● C P U:Cortex A7,dual core 1.2 Ghz
● Memory:128M SRAM
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:128M NAND FLASH
●Interface:2*RS232,1*RS485,1*LAN
●Product Size:W167.6mm×H132.6mm×D34mm
●Opening size:W155 mm×H87 mm
Product Performance:
| ·LCD screen: | : | 7-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 300cd/m2 |
| ·C P U | : | Cortex A7,dual core 1.2 Ghz |
| ·Memory | : | 128M DDR2 |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 128M NAND FLASH |
| ·SD card extension | : | Optional, Max scalability 64G |
| ·Interface | : | 1*RS232 , 2*RS485 ,1*LAN |
| ·Extension interface | : | 2*USB 2.0 |
| ·GPIO interface | : | 8 GPIO interface |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -10℃ to +50℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 4,Magnetic field strength 100A / M |
| ·Product Size | : | W167.6mm×H132.6mm×D34mm |
| ·Opening size | : | W155 mm×H87 mm |
