Product Details:
|
| Size: | 32” | Screen Type: | Led |
|---|---|---|---|
| Maximum Resolution: | 1920x1080 (16:9) | Color Dispay: | 16.7M Colors |
| Brightness: | 250 Cd/m2 | Mounting Method: | VESA,MIS-E,C |
| Refresh Rate: | 60Hz | Power: | DC 12V3A |
| High Light: | TFT Embedded Touch Monitor,Embedded Touch Monitor DVI,Touch Monitor 32 Inch GTG |
||
PRODUCT DESCRIPTION

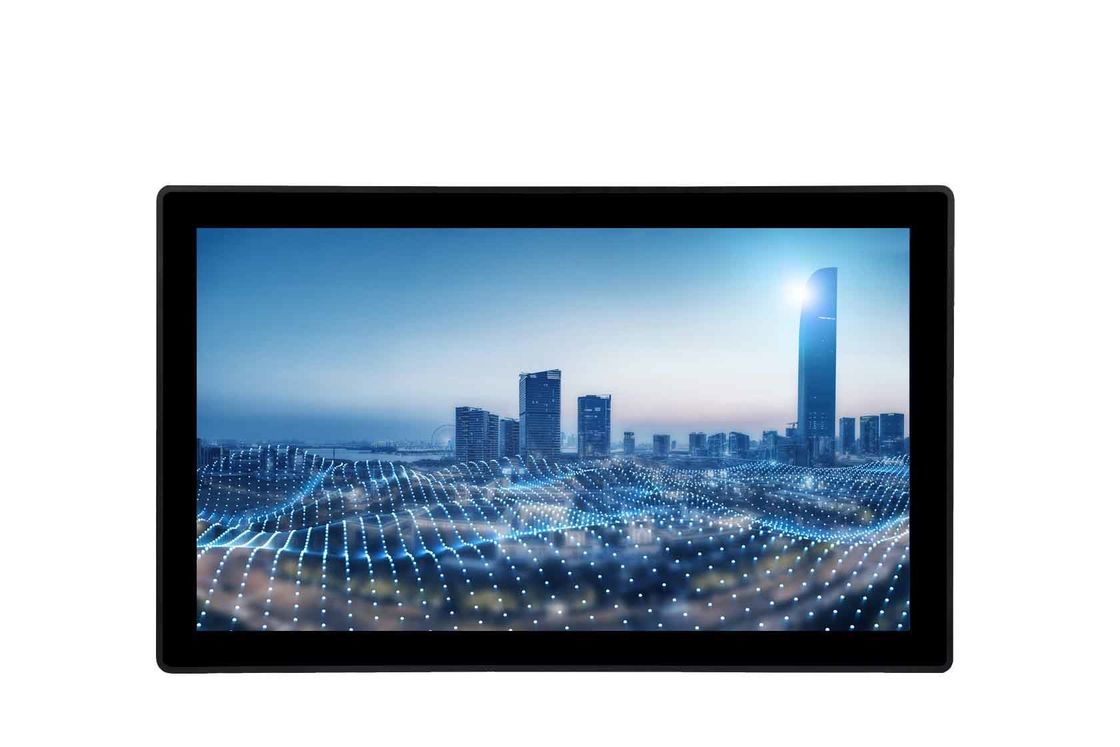

32- inch Industrial Embedded Wall Mount LCD Display Touch Screen Monitor 16: 9 TFT LCD Display Hdm VGA DVI
Custom PC reverse Monitor 32 inch lcd monitor with av TV VGA AV USB HD input Display Test Security LCD Monitor.HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 780 x 475 x 54.5 mm |
| Embedded hole opening dimensions | 772 x 467 mm |
| Packing measurement | 820 x 570 x 150 mm |
| Weight (approx) | 8kg /10 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
FEATURES
•High contrast color TFT LCD display supports resolution up to 1920*1080
•Offer Bracket / power cord / VGA cord / USB cord / power adapter
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•The LED backlight enables optimal viewing in all lighting conditions
•CE,FCC, RoHS Compliance
