Product Details:
|
| Size: | 12.5” | Backlight Technology: | Led |
|---|---|---|---|
| Visual Angle: | Horizontal: 160 / Vertical: 140 | Touch Point Number: | 10 |
| Power Input: | DC 12V3A (50/60 Hz) | Display Resolution: | 1920x1080 |
| Interlinkage: | USB2.0 | ||
| High Light: | 12.5 Inch Wall Mounted LCD Monitor,Wall Mounted LCD Monitor VGA,Desktop Touch Screen Monitor RoHS |
||
PRODUCT DESCRIPTION

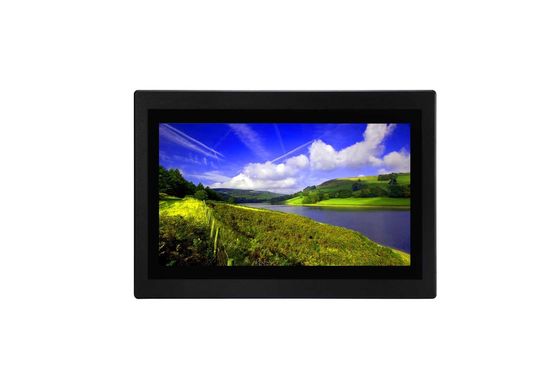

12.5-Inch Embedded / Wall-Mounted / Desktop Installation Industrial LCD Touch Screen Monitor
ITD Industrial chassis LCD monitors come with rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial harsh environments. Industrial touch screen chassis monitor displays are designed for digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports and railroad terminals.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 300 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 160 / vertical: 140 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration |
/ |
| Response time | / |
| Interlinkage | / |
| Multitouch control protocol support | / |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 334*230*45mm |
| Weight (approx) | 3kg / 5 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
FEATURES
There are menu operation buttons on the back of the case, which is more convenient for users to adjust the use effect to the best state, and supports multi-language switching;
DC 12V power input (optional 12-24V wide voltage), using phonix fastening power socket, more convenient for industrial field applications. Equipped with a world-renowned brand "Huntkey" power adapter;
Standard VGA display interface (VGA / HDMI and other interfaces are optional);
Operating system: compatible with mainstream operating systems such as Win 7/8,Android,Linux;
Support multiple installation methods, embedded/wall-mounted/desktop.
