Product Details:
|
| Size: | 19” | Backlight Technology: | Led |
|---|---|---|---|
| Contrast Ratio: | 3000:1 | Frequency Of Refresh: | 60Hz |
| Power Input: | DC 12V3A (50/60 Hz) | Display Resolution: | 1280x1024 |
| OSD Language: | English, Chinese | Luminance: | 250 Cd/m2 |
| High Light: | Capacitive 19 Inch Monitor Wall Mount,19 Inch Monitor Wall Mount OSD,Touch Monitor IPS Embedded |
||
PRODUCT DESCRIPTION

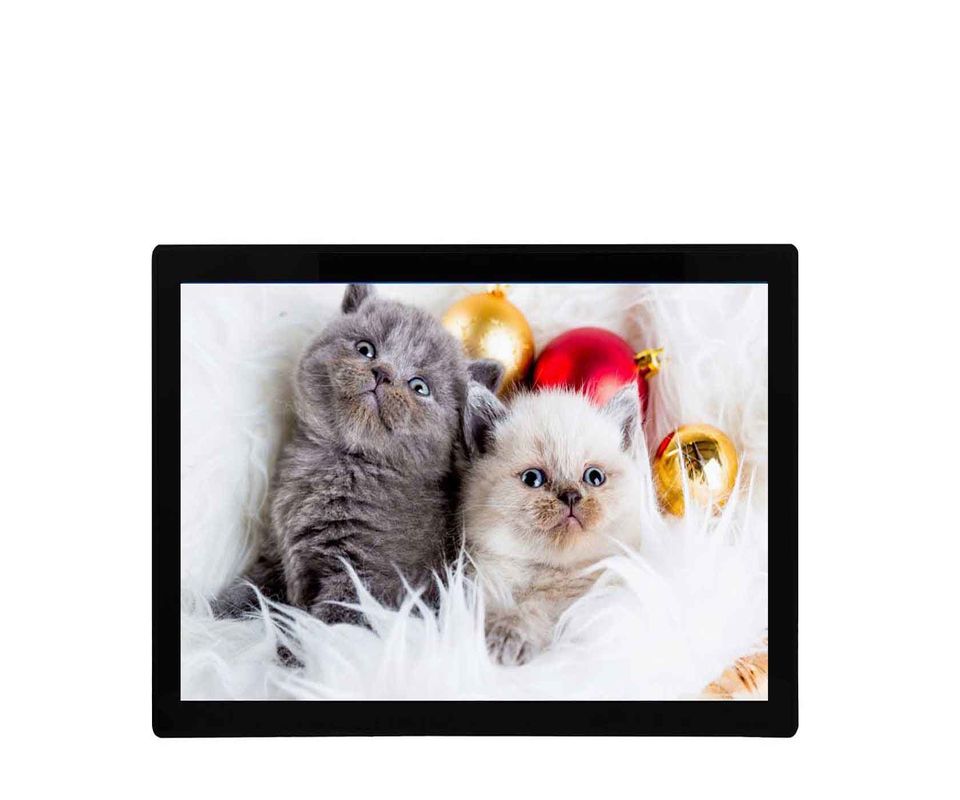

19 Inch Embedded Mount LCD Monitor for Industrial with Vesa Mount Pure Plane Capacitive Touch Monitor IPS
Custom PC reverse Monitor 19 inch lcd monitor with av TV VGA AV USB HD input Display Test Security LCD Monitor.HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1280x1024 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1280x1024 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| External dimensions | 465 x 285.5 x 42.5 mm |
| Open hole dimensions | 522x 313.5mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 20W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
