Product Details:
|
| Size: | 23.6” | Screen Type: | Led |
|---|---|---|---|
| Maximum Resolution: | 1920x1080 (16:9) | Color Dispay: | 16.7M Colors |
| Brightness: | 500 Cd/m2 | Mounting Method: | VESA,MIS-E,C |
| Refresh Rate: | 60Hz | Operating Temperature: | -20℃~60℃ |
| Warranty: | 1 Year | Power: | DC 12V |
| High Light: | VESA Embedded Touch Monitor,Embedded Touch Monitor GTG,Touch Monitor Open Frame 60Hz |
||

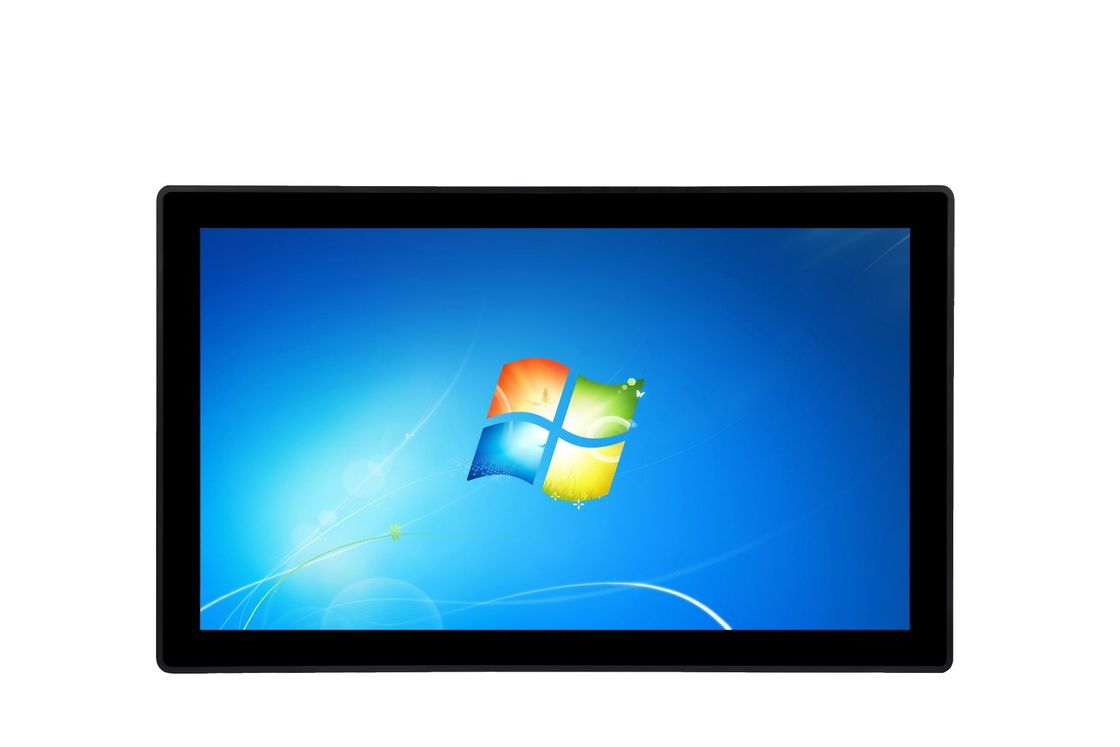

Industrial Metal Open Frame Embedded Wall Mount LCD Display Touch Screen Monitor
HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, widely used.
|
|
| Backlight technology | Led |
| Luminance | 500 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |

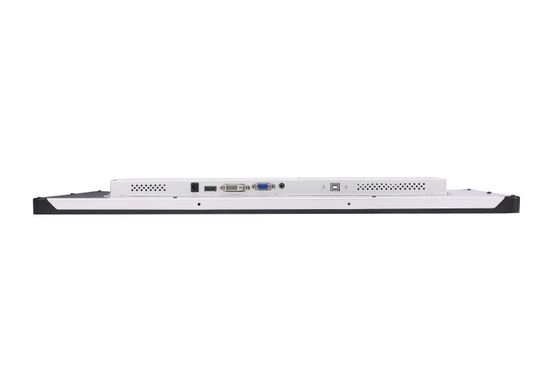

| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension | 585.4 x 357.7 x 42.8 mm |
| Packing measurement | 685 x 155 x 475 mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
