Product Details:
|
| Size: | 10.1” | Contrast Ratio: | 3000:1 |
|---|---|---|---|
| Frequency Of Refresh: | 60Hz | Power Input: | DC 12V3A (50/60 Hz) |
| Display Resolution: | 1920x1080 | Response Time: | 7ms-12ms |
| High Light: | TFT Industrial Touchscreen Panel,Industrial Touchscreen Panel IPS,Capacitive Multi Touch LCD Monitor |
||
PRODUCT DESCRIPTION

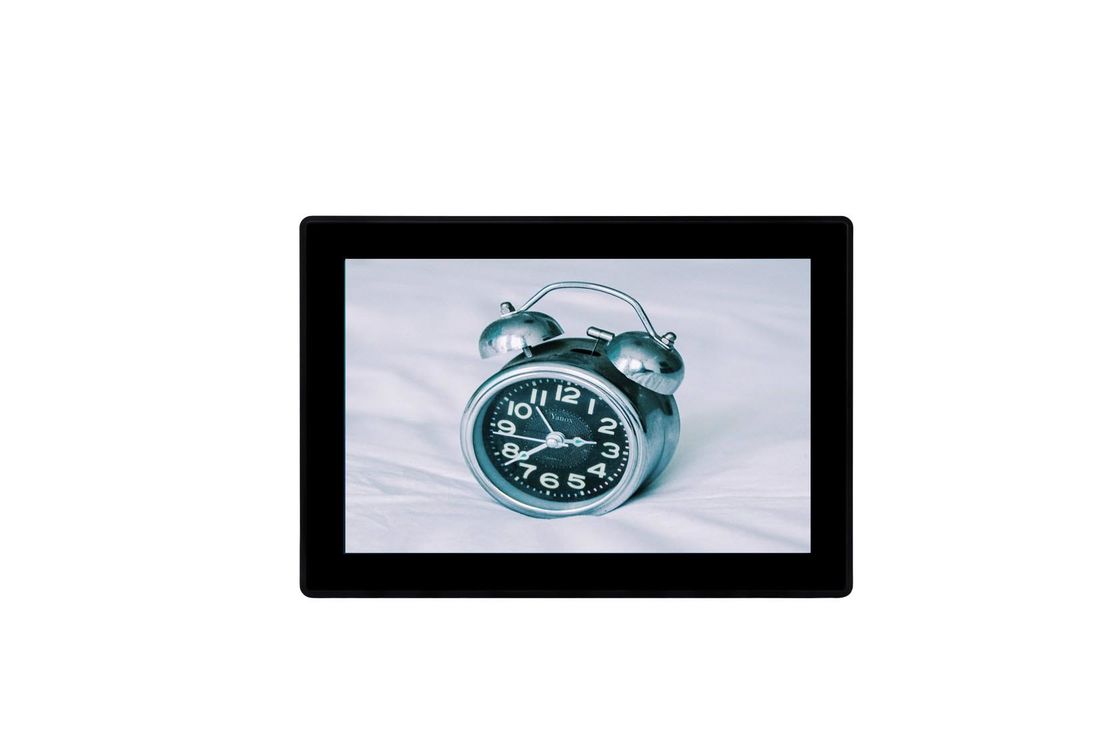

1920*1080 16: 9 10-Point Multi-Touch Industrial IPS Touchscreen Panel TFT LCD Resistive Capacitive Touch Screen Monitor
LY-A101C Monitor HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation of writing is smooth, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:300 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Input resolution:1920x1080 @ 60Hz
Junctor:VGA / HDMI
OSD control:button
OSD language:English, Chinese
Touch point number:10
Glass:3mm black screen screen tempered glass
Touch technology:Projective capacitor (G + G)
The pen type:Fingers, hands with gloves, and a conductive stylus
Waterproof performance:Touch surface is not affected by water droplets or water vapor
Response time:7ms-12ms
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Wall hanging form:VESA,MIS-E,C
Work environment:0 °C ~ 40 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
Accessories:
1 x Home AC Adapter
1 x Remote Controller
1 x SKS Cable
1 x VGA & USB Cable
1 x Operation Manual
1 x YPbPr Video Input Cable(optional)
1 x Touch Drive Disk(touch for optional)
1 x Touch Pen(touch for optional)
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 300cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 262K(6bit) Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / HDMI |
|
|
| OSD control | Button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Weight (approx) | 2kg / 4kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | none |
|
|
| Work environment | 0 °C ~ 40 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
