Product Details:
|
| Product Size: | 7 Inch | Resolution Ratio: | 800*480 |
|---|---|---|---|
| LCD Screen: | 7-inch TFT LCD, LED Backlight, Color 65536 Bits | Display Brightness: | 350cd/m2 |
| Touch Screen: | Four Wire Resistive | Operational Temperature: | -20℃ To +70℃ |
| Product Size: | W206mm×H142mm×D42mm | Opening Size: | W192mm×H134 Mm |
| High Light: | Waterproof Resistive Touch Panel,Resistive Touch Panel IP65,Dustproof Industrial Control Panel |
||
Product Description

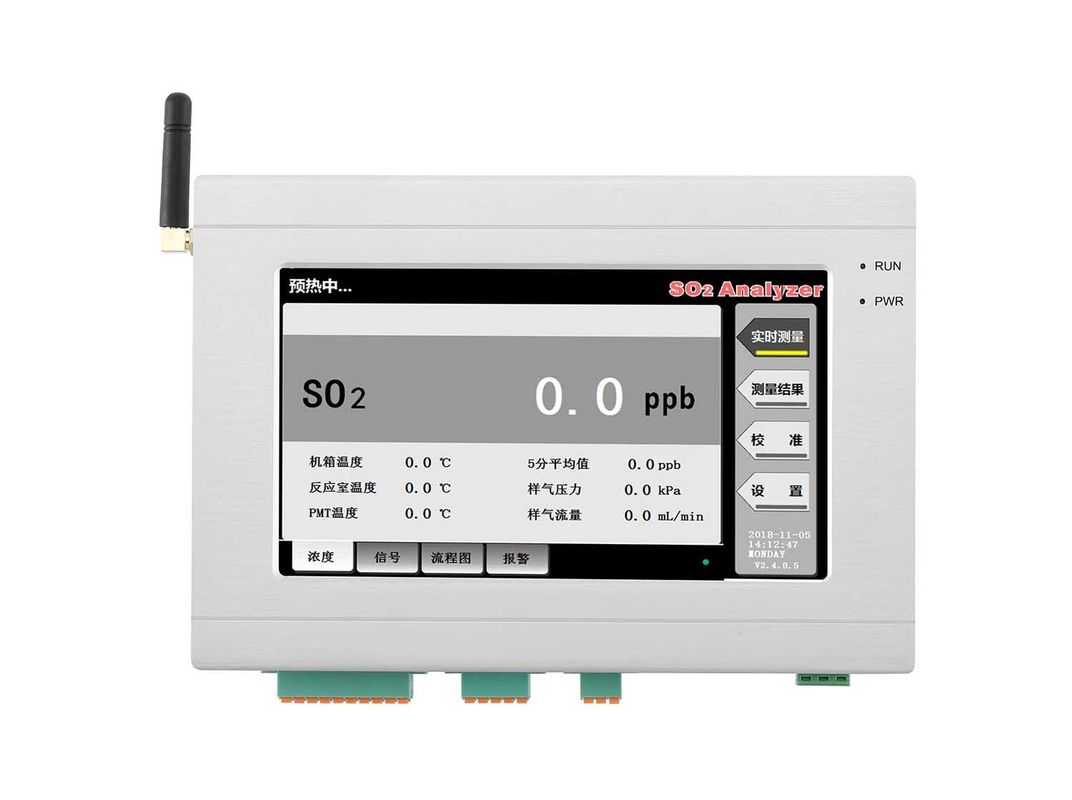

7 Inch Industrial Control Panel Resistive Touch Screen Industrial Panel IP65waterproof & Dustproof HMI
PAC070 is an industrial integrated man-machine interface. This product is designed with Cortex A8 CPU and CORTEX M0 as the core, 7-inch high-brightness LED liquid crystal display (resolution 800*480) and four-wire resistive touch screen. Signal acquisition and data processing can be carried out through multi-channel and multi-mode, and 4G wireless transmission can also be carried out; At the same time, Lonkon industrial configuration software is pre-installed.
Specifications:
Memory:512M DDRII RAM
Storage device:8G eMMC electronic disk
Interface:1*RS232,2*RS485
Product Performance:
| ·LCD screen: | : | 7-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 800*480 |
| Display brightness | : | 350cd/m2 |
| ·C P U | : | Cortex-A8 600MHz |
| ·Memory | : | 512M DDRII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |
| ·Interface | : | 1*RS232,2*RS485 |
| switching value | : | 8-way optical coupler input, 8-way relay output, 4-way optical coupler input / 4-way field tube output (PWM signal) |
| analog variable | : | 8-way input(Selectable) |
| Wireless Wifi | : | 1-way wifi (Selectable) |
| 4G | : | Support full Netcom 4G(Selectable) |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 24V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W206mm×H142mm×D42mm |
| ·Opening size | : | W192mm×H134 mm |
