Product Details:
|
| Contrast Ratio: | 3000:1 | Frequency Of Refresh: | 60Hz |
|---|---|---|---|
| Display Resolution: | 1366x768 | OSD Language: | English, Chinese |
| OSD Control: | Button | Wall Hanging Form: | VESA,MIS-E,C |
| Junctor: | VGA / DVI / HDMI | Power Input: | DC 12V3A |
| OEM/ODM: | YES | ||
| Highlight: | ODM Open Frame LCD Touch Monitor,Open Frame LCD Touch Monitor 12V3A,Kiosks LCD Monitor Touchscreen |
||
PRODUCT DESCRIPTION

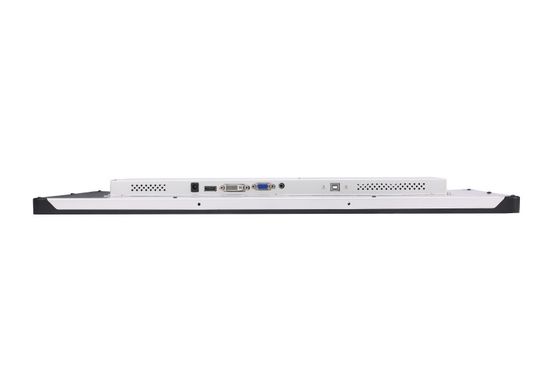

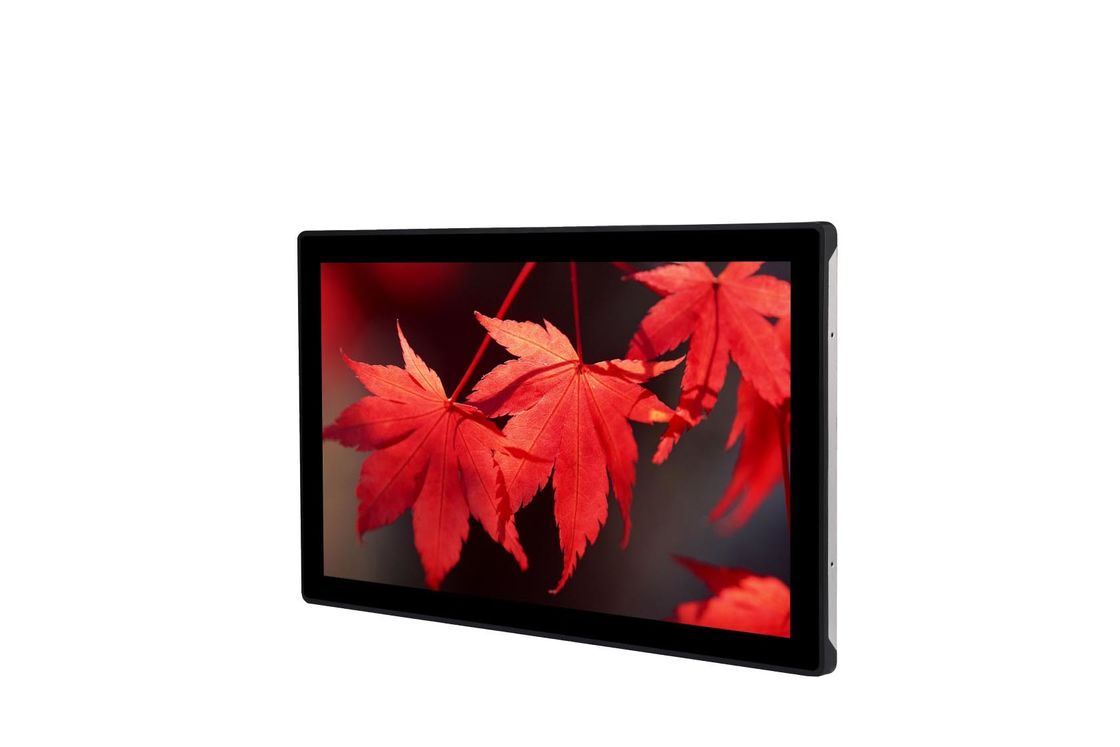

Open Frame LCD Touch Monitor Embedded 1366x768 Display for Terminal
SPECIFICATION
|
|
| Backlight technology | Led |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1366x768 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1366x768 @ 60Hz |
| 10.1" Open Frame LCD Touch Monitor Embedded for Terminal | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | / |
| Touch technology | / |
| The pen type | / |
| Waterproof performance | / |
| Calibration | / |
| Response time | / |
| Interlinkage | / |
| Multitouch control protocol support | / |
| Operating system | Win 7/8,Android,Linux |
|
|
| External dimensions | 465 x 285.5 x 42.5 mm |
| Open hole dimensions | 522x 313.5mm |
| Weight (approx) | 6 kg / 8 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | / |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
